135 Pitch Excavator Bolt On Rubber Track Pads 400mm Length

Certification
China Shanghai Puyi Industrial Co., Ltd. certification
China Shanghai Puyi Industrial Co., Ltd. certification
I'm Online Chat Now

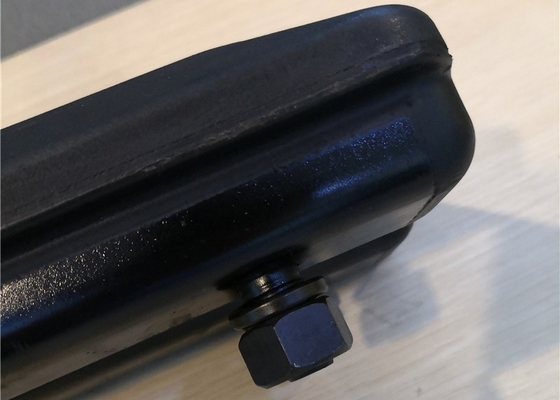

135 Pitch Excavator Bolt On Rubber Track Pads 400mm Length

135 Pitch Excavator Bolt On Rubber Track Pads 400mm Length
135 Pitch Excavator Bolt On Rubber Track Pads 400mm Length

Large Image :  135 Pitch Excavator Bolt On Rubber Track Pads 400mm Length

Product Details:
Place of Origin: CHINA
Brand Name: PY
Certification: ISO9001
Model Number: PY400B
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: Negotiable
Packaging Details: Pallet
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 5000 Pcs per month
Detailed Product Description
Height: 40mm Material: Rubber & Steel
Type: Bolt-on Weight: 5.7kg
Warranty: Half Year Under Normal Use
High Light:

Excavator Bolt On Rubber Track Pads

,

135 Pitch Rubber Track Pads

,

400mm Length Rubber Track Pads

400mm Long Rubber Track Pads for Excavators




Product Description
1. Our raw material, first-class natural rubber is imported from Thailand. It can absord the vibration and noise from construction and protect the undercarriage part of the machine, thus provides the operator with a better working environment.

2. Split type design. When the rubber pad is worn out, we only need to change the rubber pad. The steel board is strong and need no maintaince, saving money for steel board every time when a new one is needed.

3. Chamfer design, enclosed design and back lock design. All special designs help to decrease the risk of foreign body cutting into rubber or damaging rubber and increase the serving life.

4. We can offer almost every type of track pad that is currently active on market. So if you don't see what you need in our description or in the picture, contact us directly to get professional service.





135 Pitch Excavator Bolt On Rubber Track Pads 400mm Length 0

135 Pitch Excavator Bolt On Rubber Track Pads 400mm Length 1




Other sizes



Bolt-on

Type Pitch h D d Bolt L W H Weight
230BA 90 15 150 0 M12 230 60 31 0.800
230B 101 16 150 0 M12 230 70 39 0.900
250B 101 16 200 0 M12 250 70 39 0.925
300B 101 16 200 0 M12 300 70 39 1.100
300BA 101 16 200 0 M12 300 70 39 1.100
350B 101 16 200 0 M12 350 70 39 1.230
350BA 101 16 250 0 M12 350 70 39 1.230
350BD 135 14 250 46 M12 350 106 40 2.035
350BL 135 14 290 46 M12 350 106 40 1.900
350BR 135 14 290 46 M12 350 106 40 1.900
380B 135 14 300 46 M12 380 106 40 2.330
400B 135 14 300 46 M12 400 106 40 2.180
400BLR 135 14 300 46 M12 400 106 40 2.190
400BW 140 18 300 52 M14 400 123 65 4.000
400BH 140 18 350 52 M14 400 123 45 3.000
450BE 135 14 350 46 M12 450 106 40 2.450
450B 154 20 350 58 M14 450 124 49 3.500
450BLR 154 20 350 58 M14 450 124 49 3.500
500B 171 20 400 60 M16 500 137 57 4.580
500BA 175 26 400 57 M16 500 126 59 4.510
600B 190 26 400 69 M20 600 136 71 7.500
260BM   18 190 53 M12 260 120 50
260B   18 200 54 M14 260 112 48
260BK   18 200 57 M14 260 120 48
300BM   18 227 57 M12 300 120 50
300BK   18 220 57 M14 300 130 55
350BK 155 25 270 60 M14 350 135 60 4.000
400BK   25 300 60 M14 400 135 60
450BK   31 350 80 M14 450 170 76
200T   0 160 0 M14 200 90 30
305BP   0 177.8 0 M16 305 114 32
355BP   0 237.5 0 5/8" 355 132 32
455BP   0 305 0 3/4" 455 132 32
300-2 155 18 220 0 M14 300 135 50 2.400
300-4 155 18 220 45 M12 300 135 50 2.400
320-2 155 18 220 0 M14 320 135 50 2.700
320-4 155 18 220 45 M12 320 135 50 2.700



Packaging & Shipping
1. Delivery terms:by sea/ by air

2. Delivery times:7-15 Days

3. Payment terms:FOB/EXW/CIF



135 Pitch Excavator Bolt On Rubber Track Pads 400mm Length 2



135 Pitch Excavator Bolt On Rubber Track Pads 400mm Length 3
