Product Details:
Payment & Shipping Terms:
|
Commodity: | Rubber Pad | Width: | 500mm |
---|---|---|---|
Pitch: | 171mm | Weight: | 12.3kg |
Type: | Chain On | Material: | Rubber And Steel |
Warranty: | 12 Months Under Normal Use | Sample: | Free Sample But Shipping Cost Is Required |
MOQ: | 1pc | OEM: | Supported |
Packing: | Pallet Or Case | ||
Highlight: | 500mm Wide Excavator Rubber Pads,171 Pitch Chain Excavator Rubber Pads,Black Excavator Rubber Pads |
500-171 Tracked Pad Rubber Pad for Excavators
Specifications

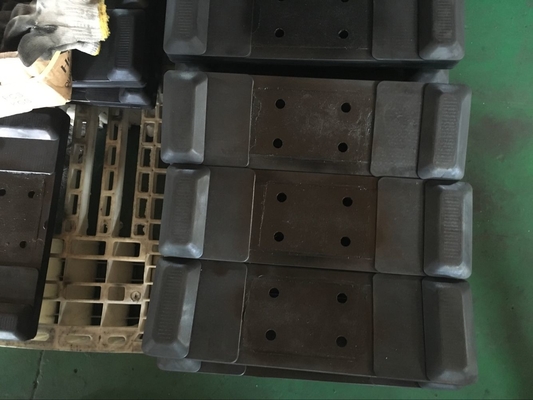

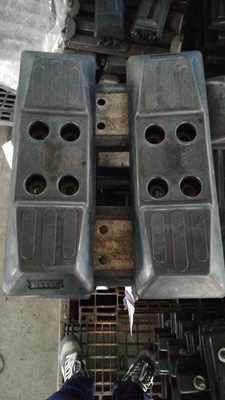

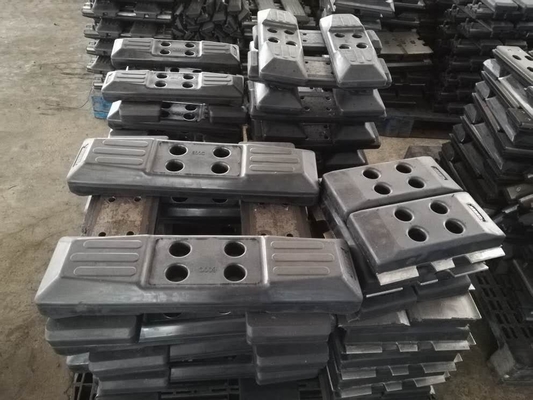

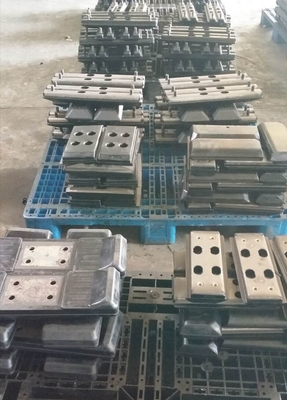

Product Pictures
Characteristics
ABOUT RUBBER PAD
Materials are specifically selected to give:
FEATURES
Rubber pad type
1. Bolt-on: Work if your existing steel pads have pre-drilled holes |
2. Clip-on: Use clips that wrap around the pad and work with most styles of pads. |
3. Chain-on : Bolt directly to the chain so there is no triple-grouser shoe involved. |
Bolt-on | ||||||||
Type | Pitch | h | D | d | Bolt | L | W | H |
230BA | 90 | 15 | 150 | 0 | M12 | 230 | 60 | 31 |
230B | 101 | 16 | 150 | 0 | M12 | 230 | 70 | 39 |
250B | 101 | 16 | 200 | 0 | M12 | 250 | 70 | 39 |
300B | 101 | 16 | 200 | 0 | M12 | 300 | 70 | 39 |
300BA | 101 | 16 | 200 | 0 | M12 | 300 | 70 | 39 |
350B | 101 | 16 | 200 | 0 | M12 | 350 | 70 | 39 |
350BA | 101 | 16 | 250 | 0 | M12 | 350 | 70 | 39 |
350BD | 135 | 14 | 250 | 46 | M12 | 350 | 106 | 40 |
350BL | 135 | 14 | 290 | 46 | M12 | 350 | 106 | 40 |
350BR | 135 | 14 | 290 | 46 | M12 | 350 | 106 | 40 |
380B | 135 | 14 | 300 | 46 | M12 | 380 | 106 | 40 |
400B | 135 | 14 | 300 | 46 | M12 | 400 | 106 | 40 |
400BLR | 135 | 14 | 300 | 46 | M12 | 400 | 106 | 40 |
400BW | 140 | 18 | 300 | 52 | M14 | 400 | 123 | 65 |
400BH | 140 | 18 | 350 | 52 | M14 | 400 | 123 | 45 |
450BE | 135 | 14 | 350 | 46 | M12 | 450 | 106 | 40 |
450B | 154 | 20 | 350 | 58 | M14 | 450 | 124 | 49 |
450BLR | 154 | 20 | 350 | 58 | M14 | 450 | 124 | 49 |
500B | 171 | 20 | 400 | 60 | M16 | 500 | 137 | 57 |
500BA | 175 | 26 | 400 | 57 | M16 | 500 | 126 | 59 |
600B | 190 | 26 | 400 | 69 | M20 | 600 | 136 | 71 |
260BM | 18 | 190 | 53 | M12 | 260 | 120 | 50 | |
260B | 18 | 200 | 54 | M14 | 260 | 112 | 48 | |
260BK | 18 | 200 | 57 | M14 | 260 | 120 | 48 | |
300BM | 18 | 227 | 57 | M12 | 300 | 120 | 50 | |
300BK | 18 | 220 | 57 | M14 | 300 | 130 | 55 | |
350BK | 155 | 25 | 270 | 60 | M14 | 350 | 135 | 60 |
400BK | 25 | 300 | 60 | M14 | 400 | 135 | 60 | |
450BK | 31 | 350 | 80 | M14 | 450 | 170 | 76 | |
200T | 0 | 160 | 0 | M14 | 200 | 90 | 30 | |
305BP | 0 | 177.8 | 0 | M16 | 305 | 114 | 32 | |
355BP | 0 | 237.5 | 0 | 5/8" | 355 | 132 | 32 | |
455BP | 0 | 305 | 0 | 3/4" | 455 | 132 | 32 | |
300-2 | 155 | 18 | 220 | 0 | M14 | 300 | 135 | 50 |
300-4 | 155 | 18 | 220 | 45 | M12 | 300 | 135 | 50 |
320-2 | 155 | 18 | 220 | 0 | M14 | 320 | 135 | 50 |
320-4 | 155 | 18 | 220 | 45 | M12 | 320 | 135 | 50 |
Chain-on | ||||||||
Type | Pitch | D | d | S | Bolt | L | W | H |
300C | 135 | 144 | 116 | 22 | M12 | 300 | 95 | 45 |
400C | 135 | 94 | 64 | 46 | M12 | 400 | 125 | 52 |
400CA | 135 | 99 | 72 | 43.5 | M12 | 400 | 125 | 52 |
400CK | 135 | 100 | 73 | 43.5 | M12 | 400 | 125 | 52 |
400CB | 135 | 104 | 80 | 46 | M12 | 400 | 125 | 52 |
400CD | 135 | 110 | 80 | 46 | M12 | 400 | 125 | 52 |
400CV | 135 | 106 | 76 | 46 | M12 | 400 | 125 | 52 |
400CK | 140 | 80 | 80 | 52 | M12 | 400 | 125 | 52 |
400CW | 140 | 86 | 86 | 52 | M12 | 400 | 125 | 52 |
450CN | 140 | 83 | 83 | 52 | M12 | 450 | 125 | 52 |
450CW | 140 | 86 | 86 | 52 | M12 | 450 | 125 | 52 |
450CA | 135 | 99 | 72 | 43.5 | M12 | 450 | 125 | 52 |
450CB | 154 | 90 | 90 | 46.3 | M14 | 450 | 146 | 55 |
450CD | 154 | 90 | 90 | 55 | M14 | 450 | 146 | 55 |
450CS | 154 | 73 | 73 | 57 | M14 | 450 | 146 | 55 |
450C | 154 | 89 | 73 | 57 | M14 | 450 | 146 | 55 |
500CW | 135 | 104 | 80 | 46 | M12 | 500 | 125 | 52 |
500CB | 175 | 102.4 | 86.4 | 57 | M16 | 500 | 162 | 69 |
500C | 171 | 108 | 108 | 60.4 | M16 | 500 | 162 | 69 |
500CS | 171 | 104 | 88 | 58 | M16 | 500 | 162 | 69 |
500CA | 190 | 160.4 | 124.4 | 62 | M20 | 500 | 178 | 72 |
500CD | 190 | 155.6 | 119.6 | 69 | M20 | 500 | 178 | 72 |
600C | 171 | 108 | 108 | 60.4 | M16 | 600 | 162 | 69 |
600CD | 190 | 155.6 | 119.6 | 69 | M20 | 600 | 178 | 72 |
600CA | 190 | 160.4 | 124.4 | 62 | M20 | 600 | 178 | 72 |
600CB | 190 | 160.4 | 124.4 | 62 | M18 | 600 | 178 | 72 |
300 | 155 | 88.9 | 88.9 | 57.1 | M12 | 300 | 186 | 55 |
320 | 155 | 104 | 88.9 | 55 | M12 | 320 | 186 | 55 |
Clip-on | |||||
Type | Pitch | h | L | W | H |
380HD | 135 | 18 | 380 | 104 | 55 |
400HD | 135 | 18 | 400 | 106 | 51 |
450HD | 135 | 18 | 450 | 106 | 51 |
450HW | 154 | 20 | 450 | 124 | 50 |
450HB | 175 | 26 | 450 | 127 | 68 |
500HD | 175 | 26 | 500 | 127 | 68 |
500HW | 171 | 20 | 500 | 137 | 68 |
500HB | 175 | 18 | 500 | 127 | 60 |
600HD | 175 | 26 | 600 | 127 | 68 |
600HB | 190 | 26 | 600 | 137 | 71 |
600HA | 216 | 30 | 600 | 160 | 76 |
700HW | 171 | 20 | 700 | 137 | 63 |
700HD | 175 | 26 | 700 | 127 | 68 |
700HD | 190 | ||||
750HA | 216 | 30 | 750 | 160 | 76 |
800HD | 190 | 26 | 800 | 137 | 70 |
