ISO Standard Rubber Track Chassis Dp-Zq-130 Guarantee 12 Month

ISO Standard Rubber Track Chassis Dp-Zq-130 Guarantee 12 Month
ISO Standard Rubber Track Chassis Dp-Zq-130 Guarantee 12 Month ISO Standard Rubber Track Chassis Dp-Zq-130 Guarantee 12 Month ISO Standard Rubber Track Chassis Dp-Zq-130 Guarantee 12 Month

Large Image :  ISO Standard Rubber Track Chassis Dp-Zq-130 Guarantee 12 Month

Product Details:
Place of Origin: China
Brand Name: PY
Certification: ISO9001: 2000
Model Number: Dp-Zq-130
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Bare Packing or Wooden Pallets
Delivery Time: 15-20DAYS
Payment Terms: T/T, Western Union
Supply Ability: 60000/PC
Detailed Product Description
Model No: Dp-Zq-130 Length: 1070mm
Width: 785mm Height: 400mm
Net Weight: 207kg Loading Bear: 300kg
Warranty: Guarantee 12 Month Under Normal Use Delivery: 15 Days After Payment
Export Market: Global
High Light:

rubber track chassis

,

crawler track undercarriage

High Quality Rubber Steel Crawler Track Chassis Undercarriage DP-ZQ-130

Product Information:

* Lug patterns on rubber tracks may be different but they are guaranteed to fit.

* Other part no. Not included in the list are available.

* Please contact your sales representative if you have any questions.

* Part Numbers and Brand names are used for reference purposes only.

* Part No. Description Most Popular Brand and Model Application (Interchangeable)

* 230X48X66 RUBBER TRACKS Bobcat: X320, 320L, X320 Delta, X320E, X322 (TYPE2), X322D,

X322E, X323 Cat: 301.8, ME15, MH15

* 230X48X68 RUBBER TRACKS Hitachi: Ex15 Lotus Root Takeuchi: TB016, TB016 S/LSA, TB016E

* 300X52.5X84 RUBBER TRACKS Cat: 303.5, 303CR, ME35, MM35, MM35Bm MM35T, MS35 (TYPE2)

* 381X101.6X42 RUBBER TRACKS ASV: RC50 Cat: 247

* 457X101.6X51 RUBBER TRACKS ASV: RC100 Cat: 287B

* 4500X90X47 RUBBER TRACKS: KUBOTA COMBINE HARVESTER DC-60

* Special Features of the PY Rubber Tracks

- 3 Metal Cores Wound Up: Higher durability & Better flexibility

- Smaller Contact Surface (Smaller Lug): Better grip & traction

- Bi Directional: Tracks are Interchangeable

- Reinforced Edges Between Lugs: Decreasing the chance of slicing

- Jointless: Track is much stronger than the joint type

*(Other Brand applications Include: Volvo, KOMATSU, KUBOTA, IHI, TAKEUCHI, KOBELKO, HITACHI,

YANMAR, FURKAWA, HANIX, KATO, SUMITOMO, BOBCAT, AIRMANN, CAT, Doosan,

*For Mini/MIDI Excavators & Compact Track Loaders

*Size Classification and Part number: Width(mm) X Pitch(mm)

(=Distance Between Metal Cores) X Numberof Links (=Number of Metal Core)

length width height diameter of the wheels net weight loading bear model of rubber track
1070mm 785mm 400mm 195mm 207Kg 300Kg WJ-130



Samll rubber track form:

Model Size Model Size Model Size
HS-32 32*12.7 HL-105 105*42 YT-200 200*52.5
BK-B** 40*9.3 CX-118 118*61 SQ-A 220*53.5
HL-40 40*44 QD-118 118*60 JH-220 220*85
PY-40 40*31.75 SJ-120 120*61 JA-220 220*50.3
PY-40 40*31.3 RN-120 120*60 DY-250 250*50.3
LG-48 48*10 WG-123 123*38 LP-250 250*50.3
DG-50* 50*22.225 GF-A* 125*19 CQ-255 255*72
GF-B* 50*19 DN-A* 130*18.5 FP-250 250*80
GMD-B* 50*20 WJ-130 130*40 WD-255 255*73
HGD-52 52*58 TH-136 136*45 SQ-B 255*72
JTDX-60* 60*15.2 WGJ-130 130*65 CF-280 280*60
XL-60** 60*13.9 HBC-140 140*30 LEVE-280 280*87
LWM-60* 60*22.225 SL-140 140*80 KD-320 320*87
JQ-B** 60*12.7 JT-140 140*20 QATV-320 320*87
BF-B** 60*15 PW-148 148*60 WD-320 320*72
BK-A** 60*13.01 ZY-148 148*60 TG-320 320*87
DN-B* 60*18.5 XF-A 150*59 TJ-360A 360*87
JT-60 60*20 NG-150 150*65 NY-380 380*65
JQ-A** 76*12.7 SF-150 150*72 YQZG-400 400*73
BF-A** 80*15 XF-B 150*59 QATV-400 400*87
HL-80 80*44 LEVE-160 160*60 TK-560 560*105
SMX-70 70*40 YSD-165 165*64.5 DNS-580 580*60.5
CHJ-80 80*40.2 WJ-165 165*65.5 XLG-620 620*100
TH-85 85*59.4 WHKD-170 170*64 BV206 620*90.6
THG-85 85*59.4 LEVE-180 180*65 WZY-800 800*90.6
GMD-A 100*20 YN-180 180*72 KCM-500 500*110
BD-B 100*40 HC-200 200*60.2
BD-A 100*40 HS-200 200*72


Inside of product:(We can design the power system according to your requirements.)
ISO Standard Rubber Track Chassis Dp-Zq-130 Guarantee 12 Month 0

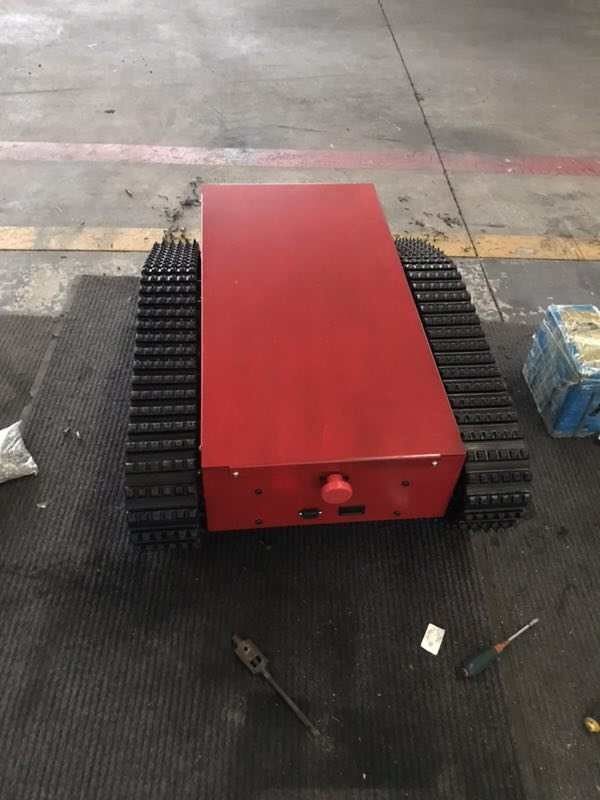

Photo of whole:
ISO Standard Rubber Track Chassis Dp-Zq-130 Guarantee 12 Month 1
