Large Dumper Rubber Tracks 650 * 125 * 78mm With Low Ground Pressure

Certification
China Shanghai Puyi Industrial Co., Ltd. certification
China Shanghai Puyi Industrial Co., Ltd. certification
I'm Online Chat Now

Large Dumper Rubber Tracks 650 * 125 * 78mm With Low Ground Pressure

Large Dumper Rubber Tracks 650 * 125 * 78mm With Low Ground Pressure
Large Dumper Rubber Tracks 650 * 125 * 78mm With Low Ground Pressure Large Dumper Rubber Tracks 650 * 125 * 78mm With Low Ground Pressure Large Dumper Rubber Tracks 650 * 125 * 78mm With Low Ground Pressure Large Dumper Rubber Tracks 650 * 125 * 78mm With Low Ground Pressure

Large Image :  Large Dumper Rubber Tracks 650 * 125 * 78mm With Low Ground Pressure

Product Details:
Place of Origin: Shanghai,China
Brand Name: PY
Certification: ISO9001: 2000
Model Number: 650*125*78
Payment & Shipping Terms:
Minimum Order Quantity: 2 PCS
Price: Negotiable
Packaging Details: Wooden pallets
Delivery Time: 15-20 days
Payment Terms: T/T, Western Union
Supply Ability: 500 Pieces Per Month
Detailed Product Description
Width: 650mm Pitch: 125mm
Link: 78 Overall Length: 9750mm
Weight: 1232.4kg Material: Rubber And Steel
Warranty: 12 Months Under Normal Use
Highlight:

mini crawler tracks

,

continuous rubber track

Commodity: Large Rubber Track 650*125*62 for Dumper
Width: 650mm
Pitch: 125mm
Links: 78(Can Be Customized)
Over length: 9984mm
Warranty: Guarantee 12 months under normal use
Applicable models:


MODELORIGINAL SIZE
RT1000 (HANIX)600X125X62
RT800 (HANIX)600X125X62
RT1000 (NISSAN)600X125X62
RT800 (NISSAN)600X125X62
LD400 (CAT)600X125X64
LD400 (MITSUBISHI)600X125X64
MX110 (MOROOKA)650X125X64


The characteristics of rubber tracks
1. Rubber tracks cause less damage to roads than steel tracks, and less rutting on soft ground than steel tracks .
2. A benefit to equipment operating in congested areas, rubber tracks make less noise than steel tracks .
3. Rubber tracks permit machines to travel at a higher speed than steel tracks .
4. Rubber tracks insulated machine and operator from vibraion, extedin the service life of machine and decreasing operator's fatigue.
5. The ground pressure of rubbr tracks equipped machinery can be fairly low, about 0.14-2.30 kg/m2, a major reason for its use on wet and soft terrain.
6. The added traction of rubber tracked vehicles permits them to pull twice the load of wheeled vehicles of the same weight.
7. Rubber tracks' pulling performance being twice that of wheels, it permits the lighter vehicles equip with rubber track to do the same pulling work than that of wheeled vehicles.
The notices of using rubber tracks
1. Adjust the tension of the rubber crawler so that the height, the variable range is 10-20mm when the machine is lifted. Readjust when the tension decreases. (Be careful because the rubber crawler may come off if the tension is too low).
2. Avoid projection from the frame around the rubber crawler, especially on its inner circumference. (Rubber crawlers are easily deformed; If it comes into contact with the frame, an accident such the rubber being cut can occur).
3. Avoid sharp projections when traveling.
4. Avoid turning too fast on concrete roads with a high coefficient of frction because this can cause accidents such as cutting the rubber.
5. Be careful that no oil, etc adheres to the rubber track. If it does, wipe it off immediately.
6. When storing for long periods, keep indoors, away from direct sunshine and rain.
7. Replace as soon as possible when abrasion of sprockets is observed


Applicable machines
various kinds of dumpers
Materialrubber and steel
Specification600*125*62
Installation positionInstalled on the dumpers


Parameters:


Width*Pitch length(mm)

Number of Links

Width*Pitch length(mm)

Number of Links

Width*Pitch length(mm)

Number of Links

130*72

28-53

300*52.5K

72-84

400*72.5KW

68-92

150*60

28-49

300*52.5KW

72-92

400*74

68-76

150*72

29-40

KB300*52.5

72-92

400*75.5K

74

170*60

30-40

KB300*52.5N

72-98

B400*86

52-55

180*60

30-40

JD300*52.5N

72-98

400*90

42-56

180*72

30-58

300*53K

80-84

Y400*142

36-37

180*72K

30-37

300*55

70-86

400*144

36-41

B180*72K

34-51

300*55.5K

76-82

Y400*144K

36-41

B180*72A

30-51

300*71K

72-55

420*100

50-58

H180*72

30-50

300*109N

25-42

450*71

76-88

190*60

30-40

K300*109

37-41

DW450*71

76-88

190*72

34-39

300*109WK

35-42

450*73.5

76-84

200*72

34-47

B300*84

78-52

450*76

80-84

200-*72K

37-47

T300*86K

48-52

450*81N

72-80

230*48

60-84

320*52.5

72-98

450*81W

72-78

230*48K

60-84

B320*52.5

68-98

KB450*81.5

72-80

230*72

42-56

320*54

70-84

K450*83.5

72-74

230*72K

42-56

B320*86

49-52

B450*84

53-56

230*96

30-48

320*90

52-56

B450*86

52-55

230*101

30-36

320*100

38-54

450*90

58-76

250*47K

84

320*100W

37-65

KU450*90

58-76

250*48.5K

80-88

Y320*106K

39-43

T450*100K

48-65

250*52.5K

72-78

350*52.5

70-92

K450*163

38

250*72

47-57

350*54.5K

80-86

485*92W

74

B250*72

34-60

B350*55K

77-98

500*90

76-82

B250*72B

42-58

350*56

80-86

500-92

72-84

E250*72

37-58

350*75.5K

74

500*92W

78-84

250*96

35-38

350*90

42-56

500*100

71

250*109

35-38

350*100

46-60

K500*146

35

260*55.5K

74-80

350*108

40-46

600*100

76-80

Y260*96

38-41

350*109

41-44

600*125

56-64

260*109

35-39

Y370*107K

39-41

700*100

80-98

280*72

45-64

400*72.5N

70-80

750*150

66

Y280*106K

35-42

400*72.5W

68-92

800*125

80

300*52.5N

72-98

Y400*72.5K

72-74





300*52.5W

72-92

KB400*72.5K

68-76

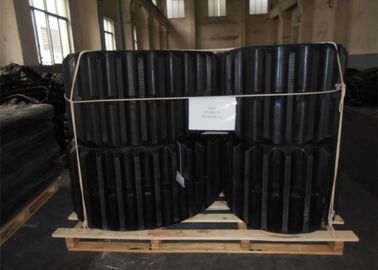

Warehouse:
Large Dumper Rubber Tracks 650 * 125 * 78mm With Low Ground Pressure 0
Large Dumper Rubber Tracks 650 * 125 * 78mm With Low Ground Pressure 1
