500x100x62 Large Dumper Rubber Track with Less Ground Damage Rubber Track

Certification
China Shanghai Puyi Industrial Co., Ltd. certification
China Shanghai Puyi Industrial Co., Ltd. certification
I'm Online Chat Now

500x100x62 Large Dumper Rubber Track with Less Ground Damage Rubber Track

500x100x62 Large Dumper Rubber Track with Less Ground Damage Rubber Track
500x100x62 Large Dumper Rubber Track with Less Ground Damage Rubber Track 500x100x62 Large Dumper Rubber Track with Less Ground Damage Rubber Track 500x100x62 Large Dumper Rubber Track with Less Ground Damage Rubber Track 500x100x62 Large Dumper Rubber Track with Less Ground Damage Rubber Track 500x100x62 Large Dumper Rubber Track with Less Ground Damage Rubber Track

Large Image :  500x100x62 Large Dumper Rubber Track with Less Ground Damage Rubber Track

Product Details:
Place of Origin: Shanghai,China
Brand Name: Pooyert
Certification: ISO9001: 2000
Model Number: 500x100x62
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Wooden Pallets
Delivery Time: 10-15 days
Payment Terms: T/T, Western Union
Supply Ability: 500 pieces per month
Detailed Product Description
Commodity: Rubber Track Size: 500x100x62
Width: 500mm Pitch: 100mm
Links(No. Of Drive Lugs/Teeth): 62 Overall Length: 100x62=6200mm
Net Weight: 394kg/pc MOQ: 1 Piece
Material: Natural Rubber And Steel Warranty: 12 Months Under Normal Use
Condition: Brand New HS CODE: 843149
OEM: Supported
Highlight:

Large Dumper Rubber Track

,

500x100x62 Dumper Rubber Track

,

Less Ground Damage Dumper Rubber Track

Large Dumper Rubber Track with Size 500x100x62


Product Description



Size 500x100x62
Outer Pattern Normal Pattern
Width 500mm
Pitch Length 100mm
Links(No. of Drive Lugs/Teeth) 62
Length 100x62=6200mm
Net Weight 394kg/pc
Material Natural Rubber and Steel
Warranty Guaranteed 12 Months under Normal Use
MOQ 1 piece
Delivery Time 25 working days generally, depends on the order quantity.
Condition Brand New
OEM Supported
HS CODE 843149



If you are not clear about what width/pitch/link stands for, please have a look at the following picture.

You can also use this way to confirm the size of rubber tracks you are using now.

500x100x62 Large Dumper Rubber Track with Less Ground Damage Rubber Track 0










Product Pictures

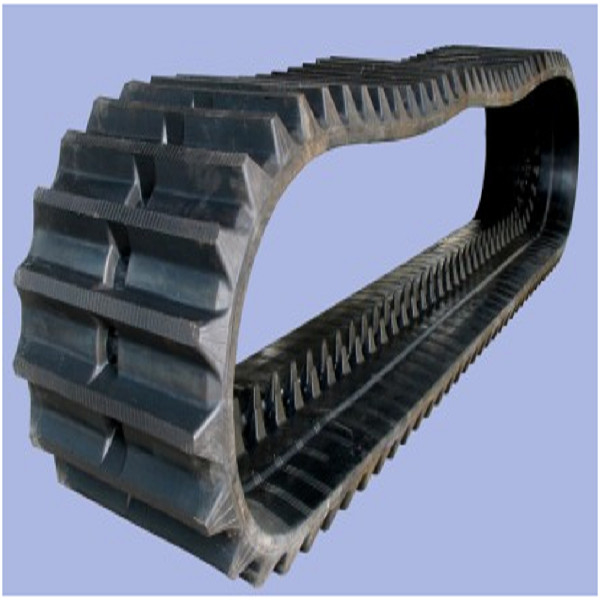

1.Overall Image



500x100x62 Large Dumper Rubber Track with Less Ground Damage Rubber Track 1

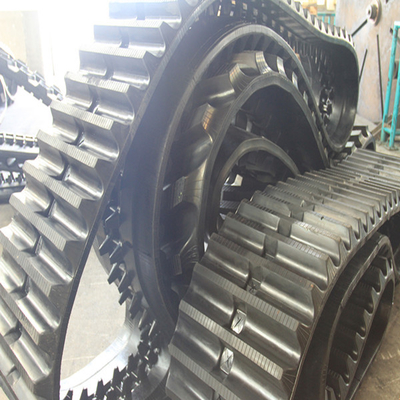

2.Outer Pattern

500x100x62 Large Dumper Rubber Track with Less Ground Damage Rubber Track 2

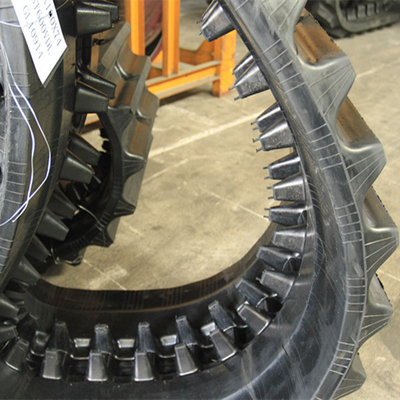

3.Inner Teeth

500x100x62 Large Dumper Rubber Track with Less Ground Damage Rubber Track 3






Delivery and Packing

1.Delivery

The lead time is normally around 25-30 working days if out of stock. Delivery time might get longer if the quantity is large.



2.Packing

Generally, the rubber tracks are packed with wooden pallet with plastic film wrapped outside.

Nude packing is also applied for orders in containers to save space.

500x100x62 Large Dumper Rubber Track with Less Ground Damage Rubber Track 4

500x100x62 Large Dumper Rubber Track with Less Ground Damage Rubber Track 5






Inner Structure

These years, we make use of the continuous steel-cable technology in order to enlarge strength and resistance of rubber tracks.
Our rubber tracks are stronger and long-lasting.

500x100x62 Large Dumper Rubber Track with Less Ground Damage Rubber Track 6

500x100x62 Large Dumper Rubber Track with Less Ground Damage Rubber Track 7




Why Choose Rubber Tracks?



(1). Less round damage
Rubber tracks cause less damage to roads than steel tracks, and less rutting of soft ground than either Steel tracks of wheel products.

(2). Low noise
A benefit to equipment operating in congested areas, rubber track products less noise than steel tracks.

(3). High speed
Rubber track permit machines to travel at a higher speed than steel tracks.

(4). Less vibration
Rubber tracks insulate machine and operator from vibration, extending the machine's lifetime and Lowering operate fatigue.

(5). Low ground pressure
The ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30 kg/ CMM, A major reason for its use on the wet and soft terrain.

(6). Superior traction
The added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles of the Sane weight.






How to Extend the Service Life of Rubber Tracks



Rubber track's pulling perofrmance being twice that of wheels . it permits the lighter vehicles the same weight .

The notices of using rubber tracks

1. Adjust the tension of the rubber crawler so that the height, the variable range is 10-20mm when the machine is lifted. Readjust when the tension decreases. (Be careful because the rubber crawler may come off if the tension is too low).

2. Avoid projection from the frame around the rubber crawler, especially on its inner circumference. (Rubber crawlers are easily deformed; If it comes into contact with the frame, an accident such the rubber being cut can occur).

3. Avoid sharp projections when traveling.

4. Avoid turning too fast on concrete roads with a high coefficient of frction because this can cause accidents such as cutting the rubber.

5. Be careful that no oil, etc adheres to the rubber track. If it does, wipe it off immediately.

6. When storing for long periods, keep indoors, away from direct sunshine and rain.

7. Replace as soon as possible when abrasion of sprockets is observed.






Other Sizes Available



Please kindly note that the following chart shows only parts of our rubber track sizes.

The products we manufacture have matched with excavators, skid steer loaders, harvesters, tractors, asphalt pavers, atv, robot and snowmobiles.

If you cannot find the size you are looking for in this chart, please feel free to contact us for more information.




Width*Pitch length(mm) Number of Links Width*Pitch length(mm) Number of Links Width*Pitch length(mm) Number of Links
130*72 28-53 300*52.5K 72-84 400*72.5KW 68-92
150*60 28-49 300*52.5KW 72-92 400*74 68-76
150*72 29-40 KB300*52.5 72-92 400*75.5K 74
170*60 30-40 KB300*52.5N 72-98 B400*86 52-55
180*60 30-40 JD300*52.5N 72-98 400*90 42-56
180*72 30-58 300*53K 80-84 Y400*142 36-37
180*72K 30-37 300*55 70-86 400*144 36-41
B180*72K 34-51 300*55.5K 76-82 Y400*144K 36-41
B180*72A 30-51 300*71K 72-55 420*100 50-58
H180*72 30-50 300*109N 25-42 450*71 76-88
190*60 30-40 K300*109 37-41 DW450*71 76-88
190*72 34-39 300*109WK 35-42 450*73.5 76-84
200*72 34-47 B300*84 78-52 450*76 80-84
200-*72K 37-47 T300*86K 48-52 450*81N 72-80
230*48 60-84 320*52.5 72-98 450*81W 72-78
230*48K 60-84 B320*52.5 68-98 KB450*81.5 72-80
230*72 42-56 320*54 70-84 K450*83.5 72-74
230*72K 42-56 B320*86 49-52 B450*84 53-56
230*96 30-48 320*90 52-56 B450*86 52-55
230*101 30-36 320*100 38-54 450*90 58-76
250*47K 84 320*100W 37-65 KU450*90 58-76
250*48.5K 80-88 Y320*106K 39-43 T450*100K 48-65
250*52.5K 72-78 350*52.5 70-92 K450*163 38
250*72 47-57 350*54.5K 80-86 485*92W 74
B250*72 34-60 B350*55K 77-98 500*90 76-82
B250*72B 42-58 350*56 80-86 500-92 72-84
E250*72 37-58 350*75.5K 74 500*92W 78-84
250*96 35-38 350*90 42-56 500*100 71
250*109 35-38 350*100 46-60 K500*146 35
260*55.5K 74-80 350*108 40-46 600*100 76-80
Y260*96 38-41 350*109 41-44 600*125 56-64
260*109 35-39 Y370*107K 39-41 700*100 80-98
280*72 45-64 400*72.5N 70-80 750*150 66
Y280*106K 35-42 400*72.5W 68-92 800*125 80
300*52.5N 72-98 Y400*72.5K 72-74
300*52.5W 72-92 KB400*72.5K 68-76




Company profile



Shanghai Puyi Industrial Co., Ltd is a speicialized manufacturer to produce and sell rubber tracks, rubber pads, rubber track system and rubber track chassis which can be widely used on excavators, snowblowers, dumpers, robots and so on.



Our products are exported to most of the developed countries, such as Europe, America, Oceania, and Asia. We are awarded ISO9001-2000 certificate of national quality assurance from UK and Hi-Tech Enterprise from Shanghai Tech-Committee. We try our best to meet all requirements from our customiers by our innovative products and unique service.



We warmly welcome your cooperation!

500x100x62 Large Dumper Rubber Track with Less Ground Damage Rubber Track 8

500x100x62 Large Dumper Rubber Track with Less Ground Damage Rubber Track 9

500x100x62 Large Dumper Rubber Track with Less Ground Damage Rubber Track 10

500x100x62 Large Dumper Rubber Track with Less Ground Damage Rubber Track 11

500x100x62 Large Dumper Rubber Track with Less Ground Damage Rubber Track 12

500x100x62 Large Dumper Rubber Track with Less Ground Damage Rubber Track 13
