Product Details:
Payment & Shipping Terms:
|
Width: | 178mm | Length: | 500mm |
---|---|---|---|
Height: | 72mm | Material: | Rubber And Steel |
Type: | Chain On | Pitch: | 190mm |
Highlight: | dozer track pads,roadliner track pads |

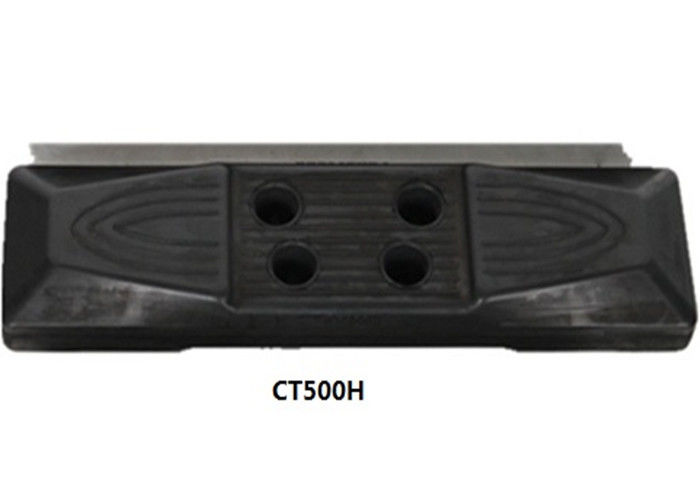

Excavator Rubber Pads CT500H for Excavator and Milling Machine (500mm )
Specification
Chain-on | ||||||||
Type | Pitch | D | d | S | Bolt | L | W | H |
300C | 135 | 144 | 116 | 22 | M12 | 300 | 95 | 45 |
400C | 135 | 94 | 64 | 46 | M12 | 400 | 125 | 52 |
400CA | 135 | 99 | 72 | 43.5 | M12 | 400 | 125 | 52 |
400CK | 135 | 100 | 73 | 43.5 | M12 | 400 | 125 | 52 |
400CB | 135 | 104 | 80 | 46 | M12 | 400 | 125 | 52 |
400CD | 135 | 110 | 80 | 46 | M12 | 400 | 125 | 52 |
400CV | 135 | 106 | 76 | 46 | M12 | 400 | 125 | 52 |
400CK | 140 | 80 | 80 | 52 | M12 | 400 | 125 | 52 |
400CW | 140 | 86 | 86 | 52 | M12 | 400 | 125 | 52 |
450CN | 140 | 83 | 83 | 52 | M12 | 450 | 125 | 52 |
450CW | 140 | 86 | 86 | 52 | M12 | 450 | 125 | 52 |
450CA | 135 | 99 | 72 | 43.5 | M12 | 450 | 125 | 52 |
450CB | 154 | 90 | 90 | 46.3 | M14 | 450 | 146 | 55 |
450CD | 154 | 90 | 90 | 55 | M14 | 450 | 146 | 55 |
450CS | 154 | 73 | 73 | 57 | M14 | 450 | 146 | 55 |
450C | 154 | 89 | 73 | 57 | M14 | 450 | 146 | 55 |
500CW | 135 | 104 | 80 | 46 | M12 | 500 | 125 | 52 |
500CB | 175 | 102.4 | 86.4 | 57 | M16 | 500 | 162 | 69 |
500C | 171 | 108 | 108 | 60.4 | M16 | 500 | 162 | 69 |
500CS | 171 | 104 | 88 | 58 | M16 | 500 | 162 | 69 |
500CA | 190 | 160.4 | 124.4 | 62 | M20 | 500 | 178 | 72 |
500CD | 190 | 155.6 | 119.6 | 69 | M20 | 500 | 178 | 72 |
600C | 171 | 108 | 108 | 60.4 | M16 | 600 | 162 | 69 |
600CD | 190 | 155.6 | 119.6 | 69 | M20 | 600 | 178 | 72 |
600CA | 190 | 160.4 | 124.4 | 62 | M20 | 600 | 178 | 72 |
600CB | 190 | 160.4 | 124.4 | 62 | M18 | 600 | 178 | 72 |
300 | 155 | 88.9 | 88.9 | 57.1 | M12 | 300 | 186 | 55 |
320 | 155 | 104 | 88.9 | 55 | M12 | 320 | 186 | 55 |
L:RUBBER PAD LENGTH
W:RUBBER PAD WIDTH
H:RUBBER PAD THICKNESS
D:CENTER HOLE DISTANCE (LONGER)
d:CENTER HOLE DISTANCE (SHORTER)
S:DISTANCE BETWEEN D&d
Chain on type feature
By only needing to bolt the chain-on rubber pads over the track chain and bolting on the outer side prevents the need for the operator or other individual(s) from needing to crawl beneath, or reaching under the machine during installation.
Rubber track pads can be added to steel tracks to increase traction and protect hard surfaces such as asphalt and concrete,
and to minimize turf damage on various worksites. Rubber track pads can also be used for increased traction on hard,abrasive surfaces.
Suitable Machines
Excavators
Trenchers
Directional drills
Concrete pavers
Crawlers
Other steel tracked vehicles
Packing and delivery
After finished production,the rubber tracks will be packing on the pallet after QC prodedure.
The pallet we use is standard export for sea shipping. Covered with stretch film and rope.
Production time is around 10 days for 200 pieces,the actual time need to be confirmed before order.
We need to check the schedule of the rubber pad orders when you plan to order.
Often,we will have small quantity of stocks if you want sample,please feel to ask.
Material production
