Product Details:
Payment & Shipping Terms:
|
| Model No: | DP-HBGD-100 | Length: | 960mm |
|---|---|---|---|
| Width: | 980mm | Height: | 260mm |
| Warranty: | Guarantee 12 Month Under Normal Use | Delivery: | 15 Days After Payment |
| Export Market: | Global | Material: | Rubber,steel |
| Condition: | New | Max Load: | 300KG |
| High Light: | crawler track undercarriage,rubber track chassis |
||
Middle Chassis / 300kg Rubber Track Undercarriage DP-HBDG-100
Product Information:
* Lug patterns on rubber tracks may be different but they are guaranteed to fit.
* Other part no. Not included in the list are available.
* Please contact your sales representative if you have any questions.
* Part Numbers and Brand names are used for reference purposes only.
* Part No. Description Most Popular Brand and Model Application (Interchangeable)
* 230X48X66 RUBBER TRACKS Bobcat: X320, 320L, X320 Delta, X320E, X322 (TYPE2), X322D,
X322E, X323 Cat: 301.8, ME15, MH15
* 230X48X68 RUBBER TRACKS Hitachi: Ex15 Lotus Root Takeuchi: TB016, TB016 S/LSA, TB016E
* 300X52.5X84 RUBBER TRACKS Cat: 303.5, 303CR, ME35, MM35, MM35Bm MM35T, MS35 (TYPE2)
* 381X101.6X42 RUBBER TRACKS ASV: RC50 Cat: 247
* 457X101.6X51 RUBBER TRACKS ASV: RC100 Cat: 287B
* 4500X90X47 RUBBER TRACKS: KUBOTA COMBINE HARVESTER DC-60
* Special Features of the PY Rubber Tracks
- 3 Metal Cores Wound Up: Higher durability & Better flexibility
- Smaller Contact Surface (Smaller Lug): Better grip & traction
- Bi Directional: Tracks are Interchangeable
- Reinforced Edges Between Lugs: Decreasing the chance of slicing
- Jointless: Track is much stronger than the joint type
*(Other Brand applications Include: Volvo, KOMATSU, KUBOTA, IHI, TAKEUCHI, KOBELKO, HITACHI,
YANMAR, FURKAWA, HANIX, KATO, SUMITOMO, BOBCAT, AIRMANN, CAT, Doosan,
*For Mini/MIDI Excavators & Compact Track Loaders
*Size Classification and Part number: Width(mm) X Pitch(mm)
(=Distance Between Metal Cores) X Numberof Links (=Number of Metal Core)
| 150 Undercarriage technology configuration list | |||
| Parts' Name | Schematic/Specification | Quantity | Notice |
| Rubber track undercarriage | 1 | load-bearing 300kg | |
| Travel motor | CRBL-10040-24 | 2 | DC brushless |
| Travel reducer | CRRV-063-40 | 2 | |
| Travel controller | CRDBL2475-2E | 1 | 2 way 75A, adjustable speed |
| Brush controller | CRDS2430-2E | 1 | 2 way 30A, adjustable speed |
| Model remote control | CRTDF-4 | 1 | Direct docking controller |
Samll rubber track form:
| Model | Size | Model | Size | Model | Size |
| HS-32 | 32*12.7 | HL-105 | 105*42 | YT-200 | 200*52.5 |
| BK-B** | 40*9.3 | CX-118 | 118*61 | SQ-A | 220*53.5 |
| HL-40 | 40*44 | QD-118 | 118*60 | JH-220 | 220*85 |
| PY-40 | 40*31.75 | SJ-120 | 120*61 | JA-220 | 220*50.3 |
| PY-40 | 40*31.3 | RN-120 | 120*60 | DY-250 | 250*50.3 |
| LG-48 | 48*10 | WG-123 | 123*38 | LP-250 | 250*50.3 |
| DG-50* | 50*22.225 | GF-A* | 125*19 | CQ-255 | 255*72 |
| GF-B* | 50*19 | DN-A* | 130*18.5 | FP-250 | 250*80 |
| GMD-B* | 50*20 | WJ-130 | 130*40 | WD-255 | 255*73 |
| HGD-52 | 52*58 | TH-136 | 136*45 | SQ-B | 255*72 |
| JTDX-60* | 60*15.2 | WGJ-130 | 130*65 | CF-280 | 280*60 |
| XL-60** | 60*13.9 | HBC-140 | 140*30 | LEVE-280 | 280*87 |
| LWM-60* | 60*22.225 | SL-140 | 140*80 | KD-320 | 320*87 |
| JQ-B** | 60*12.7 | JT-140 | 140*20 | QATV-320 | 320*87 |
| BF-B** | 60*15 | PW-148 | 148*60 | WD-320 | 320*72 |
| BK-A** | 60*13.01 | ZY-148 | 148*60 | TG-320 | 320*87 |
| DN-B* | 60*18.5 | XF-A | 150*59 | TJ-360A | 360*87 |
| JT-60 | 60*20 | NG-150 | 150*65 | NY-380 | 380*65 |
| JQ-A** | 76*12.7 | SF-150 | 150*72 | YQZG-400 | 400*73 |
| BF-A** | 80*15 | XF-B | 150*59 | QATV-400 | 400*87 |
| HL-80 | 80*44 | LEVE-160 | 160*60 | TK-560 | 560*105 |
| SMX-70 | 70*40 | YSD-165 | 165*64.5 | DNS-580 | 580*60.5 |
| CHJ-80 | 80*40.2 | WJ-165 | 165*65.5 | XLG-620 | 620*100 |
| TH-85 | 85*59.4 | WHKD-170 | 170*64 | BV206 | 620*90.6 |
| THG-85 | 85*59.4 | LEVE-180 | 180*65 | WZY-800 | 800*90.6 |
| GMD-A | 100*20 | YN-180 | 180*72 | KCM-500 | 500*110 |
| BD-B | 100*40 | HC-200 | 200*60.2 | ||
| BD-A | 100*40 | HS-200 | 200*72 |

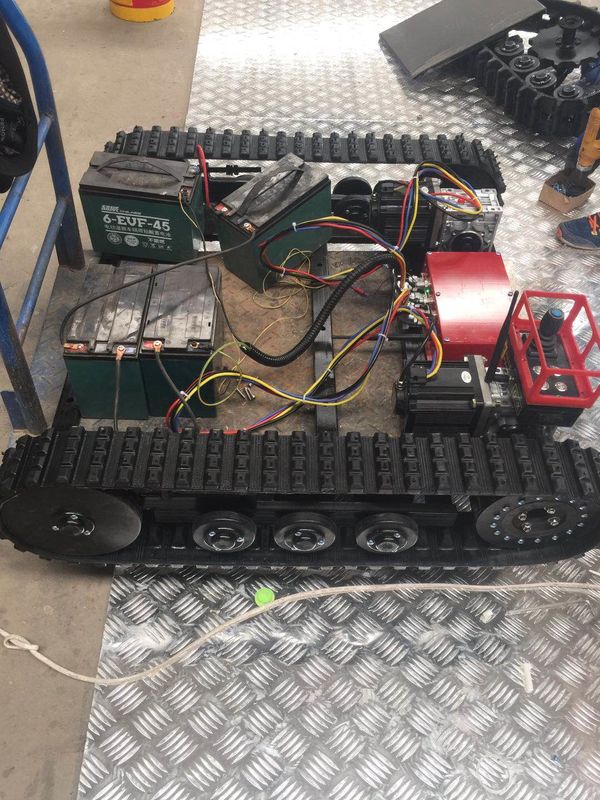

Inside of product:(We can design the power system according to your requirements.)

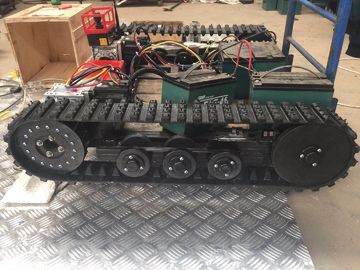

Photo of whole:
