ISO9001 Approval Kubota Rubber Track D450*90*51 For Kubota Combine Harvesters

Certification
China Shanghai Puyi Industrial Co., Ltd. certification
China Shanghai Puyi Industrial Co., Ltd. certification
I'm Online Chat Now

ISO9001 Approval Kubota Rubber Track D450*90*51 For Kubota Combine Harvesters

ISO9001 Approval Kubota Rubber Track D450*90*51 For Kubota Combine Harvesters
ISO9001 Approval Kubota Rubber Track D450*90*51 For Kubota Combine Harvesters ISO9001 Approval Kubota Rubber Track D450*90*51 For Kubota Combine Harvesters ISO9001 Approval Kubota Rubber Track D450*90*51 For Kubota Combine Harvesters

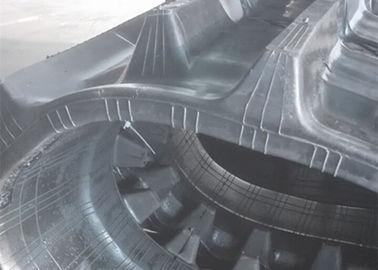

Large Image :  ISO9001 Approval Kubota Rubber Track D450*90*51 For Kubota Combine Harvesters

Product Details:
Place of Origin: CHINA
Brand Name: PY
Certification: ISO9001
Model Number: D450*90*51
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: Pallet
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 5000 pcs per month
Detailed Product Description
Width: 450mm Pitch: 90mm
Link: 51 Overall Length: 4590mm
Weight: 207.57kg Material: Rubber/steel
High Light:

90mm Pitch Agricultural Rubber Tracks

,

51 Link Agricultural Rubber Tracks



450mm Width Rubber Track D450*90*51 for Kubota Combine Harvesters






Applicable machines
Harvester
Material rubber and steel
Specification 450*90; links 51
Installation position Installed on the harvester


The characteristics of rubber tracks

1. Rubber tracks cause less damage to roads than steel tracks, and less rutting on soft

ground than steel tracks

2. A benefit to equipment operating in congested areas, rubber tracks make less noise than

steel tracks

3. Rubber tracks permit machines to travel at a higher speed than steel tracks

4. Rubber tracks insulated machine and operator from vibraion, exteding the service life of

machine and decreasing operator's fatigue

5. The ground pressure of rubbr tracks equipped machinery can be fairly low, about 0.14-2.30

kg/m2, a major reason for its use on wet and soft terrain.

6. The added traction of rubber tracked vehicles permits them to pull twice the load of wheeled

vehicles of the same weight.

7. Rubber tracks' pulling performance being twice that of wheels, it permits the lighter vehicles

equip with rubber track to do the same pulling work than that of wheeled vehicles.


The notices of using rubber tracks

1. Adjust the tension of the rubber crawler so that the height, the variable range is 10-20mm

when the machine is lifted. Readjust when the tension decreases. (Be careful because the

rubber crawler may come off if the tension is too low).

2. Avoid projection from the frame around the rubber crawler, especially on its inner

circumference. (Rubber crawlers are easily deformed; If it comes into contact with the frame,

an accident such the rubber being cut can occur).

3. Avoid sharp projections when traveling.

4. Avoid turning too fast on concrete roads with a high coefficient of frction because this can

cause accidents such as cutting the rubber.

5. Be careful that no oil, etc adheres to the rubber track. If it does, wipe it off immediately.

6. When storing for long periods, keep indoors, away from direct sunshine and rain.

7. Replace as soon as possible when abrasion of sprockets is observed

We also have other kinds of and sizes of rubber tracks, if you have interest in it, do not hesitate

to send me a message and I will be very glad to be at your service.

Looking forward to receiving your enquiry.

Parameters:



Width*Pitch length(mm) Number of Links Width*Pitch length(mm) Number of Links Width*Pitch length(mm) Number of Links
130*72 28-53 300*52.5K 72-84 400*72.5KW 68-92
150*60 28-49 300*52.5KW 72-92 400*74 68-76
150*72 29-40 KB300*52.5 72-92 400*75.5K 74
170*60 30-40 KB300*52.5N 72-98 B400*86 52-55
180*60 30-40 JD300*52.5N 72-98 400*90 42-56
180*72 30-58 300*53K 80-84 Y400*142 36-37
180*72K 30-37 300*55 70-86 400*144 36-41
B180*72K 34-51 300*55.5K 76-82 Y400*144K 36-41
B180*72A 30-51 300*71K 72-55 420*100 50-58
H180*72 30-50 300*109N 25-42 450*71 76-88
190*60 30-40 K300*109 37-41 DW450*71 76-88
190*72 34-39 300*109WK 35-42 450*73.5 76-84
200*72 34-47 B300*84 78-52 450*76 80-84
200-*72K 37-47 T300*86K 48-52 450*81N 72-80
230*48 60-84 320*52.5 72-98 450*81W 72-78
230*48K 60-84 B320*52.5 68-98 KB450*81.5 72-80
230*72 42-56 320*54 70-84 K450*83.5 72-74
230*72K 42-56 B320*86 49-52 B450*84 53-56
230*96 30-48 320*90 52-56 B450*86 52-55
230*101 30-36 320*100 38-54 450*90 58-76
250*47K 84 320*100W 37-65 KU450*90 58-76
250*48.5K 80-88 Y320*106K 39-43 T450*100K 48-65
250*52.5K 72-78 350*52.5 70-92 K450*163 38
250*72 47-57 350*54.5K 80-86 485*92W 74
B250*72 34-60 B350*55K 77-98 500*90 76-82
B250*72B 42-58 350*56 80-86 500-92 72-84
E250*72 37-58 350*75.5K 74 500*92W 78-84
250*96 35-38 350*90 42-56 500*100 71
250*109 35-38 350*100 46-60 K500*146 35
260*55.5K 74-80 350*108 40-46 600*100 76-80
Y260*96 38-41 350*109 41-44 600*125 56-64
260*109 35-39 Y370*107K 39-41 700*100 80-98
280*72 45-64 400*72.5N 70-80 750*150 66
Y280*106K 35-42 400*72.5W 68-92 800*125 80
300*52.5N 72-98 Y400*72.5K 72-74
300*52.5W 72-92 KB400*72.5K 68-76
