Rubber / Steel Agricultural Rubber Tracks 203mm Pitch With Tread Design

Rubber / Steel Agricultural Rubber Tracks 203mm Pitch With Tread Design
Rubber / Steel Agricultural Rubber Tracks 203mm Pitch With Tread Design Rubber / Steel Agricultural Rubber Tracks 203mm Pitch With Tread Design Rubber / Steel Agricultural Rubber Tracks 203mm Pitch With Tread Design Rubber / Steel Agricultural Rubber Tracks 203mm Pitch With Tread Design Rubber / Steel Agricultural Rubber Tracks 203mm Pitch With Tread Design Rubber / Steel Agricultural Rubber Tracks 203mm Pitch With Tread Design

Large Image :  Rubber / Steel Agricultural Rubber Tracks 203mm Pitch With Tread Design

Product Details:
Place of Origin: CHINA
Brand Name: PY
Certification: ISO9001
Model Number: 762X203X52
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: Pallet
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 5000 pcs per month
Detailed Product Description
Width: 762mm Pitch: 203mm
Link: 52 Overall Length: 10556mm
Weight: 800kg Material: Rubber/steel
High Light:

truck rubber tracks

,

combine harvester rubber track

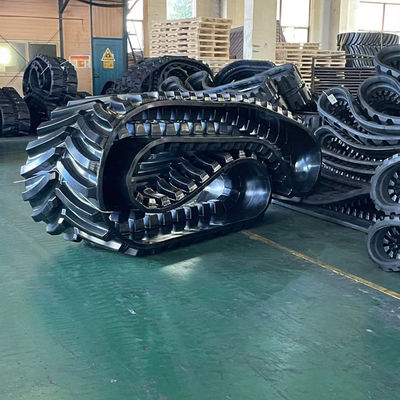

Challenger Agco Mt 800 Mt835, Mt835b, Mt835c, Mt845, Mt845b Rubber Tracks 30"




Applicable machines
Agricultural machinery
Material rubber and steel
Specification 762X203X52
Installation position Installed on the harvester




The characteristics of rubber tracks

We are covering new ground with our expanded lineup for the John Deere® 8RT and 9RT models
Standard agricultural track and ultra aggressive agricultural track enhancements

1.Ten percent more cable makes a more durable track with a stronger carcass. With 5.3mm cables, our longer life tracks lead the marketplace.

2.Patented galvanized corrosion-resistant cable also increases the life of the carcass.

3.The stronger carcass foundation reduces internal track temperatures, improves tread lug performance and tread wear life.

4.By doubling the wire, tread wear and track performance improve dramatically.

Additional design features on our ultra aggressive agricultural track

5.Increased tread height and width puts more tread on the ground for longer tread wear life.

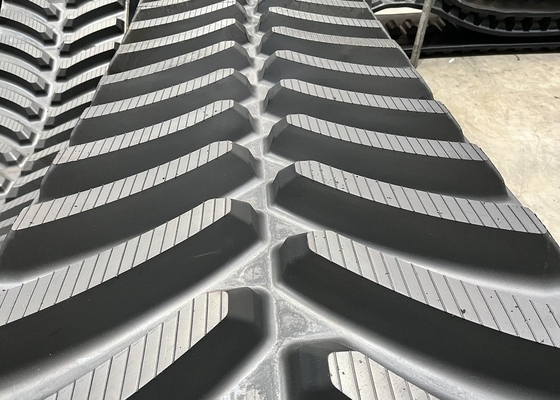

6.Tread design promotes lug strength and enables better clean out.

7.Thicker carcass provides a stronger foundation and optimizes the benefits of the new tread design.

Application:


Agriculture machine,mainly for Claas,challenger and john deere.

3.Convontional type or interchangeable type rubber track
4.Packaging & Delivery
1).Packing:Bare package or Pallet
2).Delivery time:7days.

5.Other condiation:
1).MOQ:2 Piece
2).Supply Ability:5000 Pcs/Month
3).Brand:OEM is ok
4).Color:Black

6.Warranty:Guarantee one year under normal use.



The notices of using rubber tracks

1. Adjust the tension of the rubber crawler so that the height, the variable range is 10-20mm

when the machine is lifted. Readjust when the tension decreases. (Be careful because the

rubber crawler may come off if the tension is too low).

2. Avoid projection from the frame around the rubber crawler, especially on its inner

circumference. (Rubber crawlers are easily deformed; If it comes into contact with the frame,

an accident such the rubber being cut can occur).

3. Avoid sharp projections when traveling.

4. Avoid turning too fast on concrete roads with a high coefficient of frction because this can

cause accidents such as cutting the rubber.

5. Be careful that no oil, etc adheres to the rubber track. If it does, wipe it off immediately.

6. When storing for long periods, keep indoors, away from direct sunshine and rain.

7. Replace as soon as possible when abrasion of sprockets is observed

We also have other kinds of and sizes of rubber tracks, if you have interest in it, do not hesitate

to send me a message and I will be very glad to be at your service.

Looking forward to receiving your enquiry.



Rubber / Steel Agricultural Rubber Tracks 203mm Pitch With Tread Design 0

Width*Pitch length(mm) Number of Links Width*Pitch length(mm) Number of Links Width*Pitch length(mm) Number of Links
130*72 28-53 300*52.5K 72-84 400*72.5KW 68-92
150*60 28-49 300*52.5KW 72-92 400*74 68-76
150*72 29-40 KB300*52.5 72-92 400*75.5K 74
170*60 30-40 KB300*52.5N 72-98 B400*86 52-55
180*60 30-40 JD300*52.5N 72-98 400*90 42-56
180*72 30-58 300*53K 80-84 Y400*142 36-37
180*72K 30-37 300*55 70-86 400*144 36-41
B180*72K 34-51 300*55.5K 76-82 Y400*144K 36-41
B180*72A 30-51 300*71K 72-55 420*100 50-58
H180*72 30-50 300*109N 25-42 450*71 76-88
190*60 30-40 K300*109 37-41 DW450*71 76-88
190*72 34-39 300*109WK 35-42 450*73.5 76-84
200*72 34-47 B300*84 78-52 450*76 80-84
200-*72K 37-47 T300*86K 48-52 450*81N 72-80
230*48 60-84 320*52.5 72-98 450*81W 72-78
230*48K 60-84 B320*52.5 68-98 KB450*81.5 72-80
230*72 42-56 320*54 70-84 K450*83.5 72-74
230*72K 42-56 B320*86 49-52 B450*84 53-56
230*96 30-48 320*90 52-56 B450*86 52-55
230*101 30-36 320*100 38-54 450*90 58-76
250*47K 84 320*100W 37-65 KU450*90 58-76
250*48.5K 80-88 Y320*106K 39-43 T450*100K 48-65
250*52.5K 72-78 350*52.5 70-92 K450*163 38
250*72 47-57 350*54.5K 80-86 485*92W 74
B250*72 34-60 B350*55K 77-98 500*90 76-82
B250*72B 42-58 350*56 80-86 500-92 72-84
E250*72 37-58 350*75.5K 74 500*92W 78-84
250*96 35-38 350*90 42-56 500*100 71
250*109 35-38 350*100 46-60 K500*146 35
260*55.5K 74-80 350*108 40-46 600*100 76-80
Y260*96 38-41 350*109 41-44 600*125 56-64
260*109 35-39 Y370*107K 39-41 700*100 80-98
280*72 45-64 400*72.5N 70-80 750*150 66
Y280*106K 35-42 400*72.5W 68-92 800*125 80
300*52.5N 72-98 Y400*72.5K 72-74
300*52.5W 72-92 KB400*72.5K 68-76

Rubber / Steel Agricultural Rubber Tracks 203mm Pitch With Tread Design 1

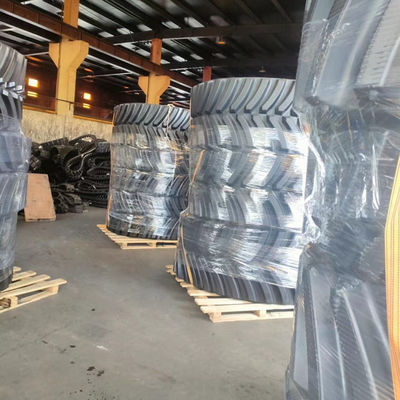

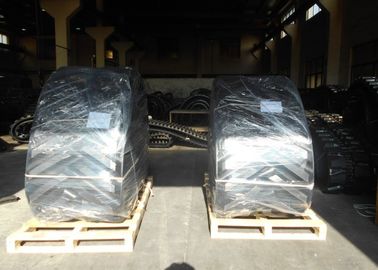

Warehouse:
