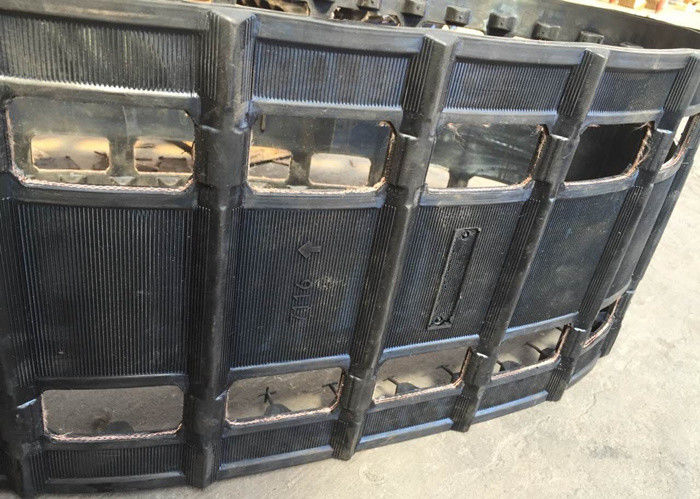

Yanmar Snowmobile Rubber Track Overall With 20 Drive Lugs Length 2074mm 20 Link

China Yanmar Snowmobile Rubber Track Overall With 20 Drive Lugs Length 2074mm 20 Link supplier
Yanmar Snowmobile Rubber Track Overall With 20 Drive Lugs Length 2074mm 20 Link supplier Yanmar Snowmobile Rubber Track Overall With 20 Drive Lugs Length 2074mm 20 Link supplier

Large Image :  Yanmar Snowmobile Rubber Track Overall With 20 Drive Lugs Length 2074mm 20 Link

Product Details:

Place of Origin: CHINA
Brand Name: PY
Certification: ISO9001
Model Number: 305X103.7X20

Payment & Shipping Terms:

Minimum Order Quantity: 2 pcs
Price: Negotiable
Packaging Details: Pallet
Delivery Time: 5-7 days
Payment Terms: T/T, Western Union
Supply Ability: 5000 pcs per month
Contact Now
Detailed Product Description
Width: 305mm Pitch: 103.7mm
Link: 20 Weight: 6.4KG/pc
Overall Length: 2074mm Material: Rubber/steel



Yanmar Snosc0ot Rubber Tracks with 20 drive lugs and length 81.6 in



  • 81.6 in for Snoscoot, 89.7 in for Snosport





Introduce



Our Rubber Track are made from natural rubber. It possesses very good properties of wearing resistance and non-disintegration etc. The adhesion between the rubber and the steel frame is very strong, in addition the replacement is convenient and the service life is long, it is suitable for various snow mobiles



Width is the track size across the track.
Narrower tracks have lighter weight than wider tracks, but wider tracks have better traction and flotation in soft and deep snow than narrower ones.





Lug height, measures from the top side flat surface of the track to the top of the lug. More lug height will have better traction — as little as a quarter inch of extra height can make a substantial difference in acceleration and braking.



Drive pitch is the distance from one point on the track lug to the same point on the next lug. The most used pitches are 2.52", 2.86", 3". Common phrases are "2.52 pitch" and what this means is that the track lugs are spaced out so that there is 2.52″ from a common point on each lug to the next.





LENGTH is the track circumference. Length = Drive pitch x numbers of track segments. Shorter tracks have better handling performance than longer tracks, but longer tracks have better flotation.



The characteristics

1. Rubber tracks cause less damage to roads than steel tracks, and less rutting on soft ground than steel tracks
2. A benefit to equipment operating in congested areas, rubber tracks make less noise than steel tracks
3. Rubber tracks permit machines to travel at a higher speed than steel tracks
4. Rubber tracks insulated machine and operator from vibraion, exteding the service life of machine and decreasing operator's fatigue
5. The ground pressure of rubbr tracks equipped machinery can be fairly low, about 0.14-2.30 kg/m2, a major reason for its use on wet and soft terrain.
6. The added traction of rubber tracked vehicles permits them to pull twice the load of wheeled vehicles of the same weight.
7. Rubber tracks' pulling performance being twice that of wheels, it permits the lighter vehicles equip with rubber track to do the same pulling work than that of wheeled vehicles.


The notices of using rubber tracks

1. Adjust the tension of the rubber crawler so that the height, the variable range is 10-20mm when the machine is lifted. Readjust when the tension decreases. (Be careful because the rubber crawler may come off if the tension is too low).
2. Avoid projection from the frame around the rubber crawler, especially on its inner circumference. (Rubber crawlers are easily deformed; If it comes into contact with the frame, an accident such the rubber being cut can occur).
3. Avoid sharp projections when traveling.
4. Avoid turning too fast on concrete roads with a high coefficient of frction because this can cause accidents such as cutting the rubber.
5. Be careful that no oil, etc adheres to the rubber track. If it does, wipe it off immediately.
6. When storing for long periods, keep indoors, away from direct sunshine and rain.
7. Replace as soon as possible when abrasion of sprockets is observed





Applicable machines snow mobiles
Material rubber and steel
Specification 300-103.7-20
Installation position Installed on the snow mobiles


Producing workhouse
