Product Details:
Payment & Shipping Terms:
|

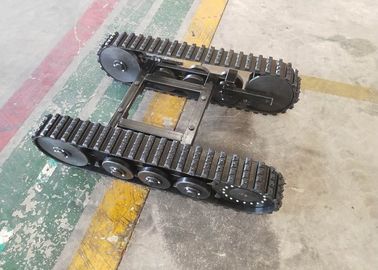

| Product Name: | Rubber Chassis | Length: | 925.5mm |
|---|---|---|---|
| Height: | 252.5mm | Net Weight: | 33kg |
| Loading Bear: | 100-200kg | Delivery: | 20 Days After Payment |
| Warranty: | 12 Month For Normal Usage | Export Market: | Global |
| Width: | 600mm | ||
| High Light: | crawler track undercarriage,rubber track chassis |
||
Material: High quality carbon steel / rubber
Process: Casting / Forging, Machining, Heatreatment, assembly
Hardness: 55 - 60HRC
Hardness depth: 6-11mm
Electronic control system
Including: motor & retarding system, control system, remote control
| Large Size Rubber Track Undercarriage | |||||||||
| Model | Length | Width | Height | Sprocket Diameter | Rubber Track Model/Width | Rubber Track Link | Weight | load-bearing Weight | Stent |
| DP-DXAL-400 | 4100 /3800mm | 1800mm | 1900mm | 650mm | MD-400/400mm | 112 | 2388KG | 4 T | I-Steel Stent |
| DP-GDL-620 | 4120mm | 620mm | 910mm | 650mm | BV-206/620mm | 91 | 2.5 T | 10 T | I-Steel Stent |
| DP-SZHK-620 | 4150mm | 2820mm | 920mm | 607.52mm | BV-206/620mm | 96 | 2744Kg | 8T | I-Steel Stent |
| DP-TK-560 | 5600mm | 2800mm | 1100mm | 600mm | TK-560/560MM | 80 | 3000KG | 10T | I-Steel Stent |
| Middle Size Rubber Track Undercarriage (320-400mm) | |||||||||
| Model | Length | Width | Height | Sprocket Diameter | Rubber Track Model/Width | Rubber Track Link | Weight | Load-bearing Weight | Stent |
| DP-ZLT-320 | 1990mm | 1400mm | 470mm | 380mm | KD-320/320mm | 50 | 639.5KG | 2.5Tons | Square Tube Brackets |
| DP-CFHF-320 | 1860mm | 1500mm | 630mm | 504.18mm | KD-320/320mm | 43 | 1149kg | 2.5Tons | Square Tube Brackets |
| DP-LPT-320 | 2000mm | 1450mm | 628mm | 508mm | KD-320/320mm | 54 | 800KG | 2.5T | Square Tube Brackets |
| DP-GHG-320 | 2200mm | 1700mm | 490mm | 450mm | WD-320 | 51 | 610kg | 3T | Square Tube Brackets |
| DP-LYDX-320 | 2250mm | 1850mm | 1850mm | 380mm | KD-320/320mm | 82 | 1687KG | 3Tons | Square Tube Brackets |
| DP-AQZ-320 | 2300mm | 1520mm | 680mm | 312mm | KD-320/320mm | 59 | 691.5kg | 3T | I-Steel Stent |
| DP-NY-320 | 2250mm | 2300mm | 620mm | 461mm | KD-320/320mm | 56 | 517kg With Motor | 3T | I-Steel Stent |
| DP-GA-320 | 2300mm | 1500mm | 560mm | 388mm | KD-320/320mm | 57 | 637KG | 3T | I-Steel Stent |
| DP-AX-320 | 2130mm | 1430mm | 685mm /600mm | 220mm | KD-320/320mm | 54 | 700KG | 3Tons | I-Steel Stent |
| DP-TDCQ-320 | 3000mm | 2045mm | 670mm | 312mm | KD-320/320mm | 75 | 1090KG | 4Tons | Square Tube Brackets |
| DP-KD-320 | 3000mm | 2300mm | 620mm | 461mm | KD-320/320mm | 92 | 350Kg with motor | 4T | Square Tube Brackets |
| DP-KL-320 | 3000MM | 1450MM | 495/590MM | 318MM | KD-320/320mm | 70 | 950Kg | 4Tons | Square Tube Brackets |
| DP-CQ-320 | 3000MM | 1800MM | 950MM | 250mm | KD-320/320mm | 138 | 800kg | 4Tons | Square Tube Brackets |
| DP-HA-320 | 3880mm | 2600mm | 580mm | 350mm | QATV-320/320mm | 1500kg | 2.5T | 4T | Square Tube Brackets |
| DP-LFG-400 | 2600mm | 1600mm | 630mm | 562.77 | YQZG-400/400mm | 87 | 830Kg | 4T | Square Tube Brackets |
| DP-DQ-400 | 2640MM | 1800MM | 660MM | 380mm | YQZG-400/400mm | 78 | 830Kg | 4T | Square Tube Brackets |
| DP-CD-400 | 2770MM | 1802MM | 625MM | 460mm | MD-400/400mm | 82 | 907.5Kg | 4T | I-Steel Stent |
| DP-QHWT-400 | 2690MM | 1800MM | 640MM | 465mm | MD-400/400mm | 80 | 874Kg | 4T | I-Steel Stent |
| DP-LZL-400 | 3070mm | 2100mm | 730MM | 660mm | MD-400/400mm | 92 | 1292KG | 4Tons | I-Steel Stent |
| DP-YQZG-400 | 3000mm | 1800mm | 765mm | 727mm | YQZG-400/400mm | 100 | 2.5Tons | 6T | I-Steel Stent |
| DP-SZKW-400 | 3800mm | 1810mm | 805mm | 460mm | YQZG-400/400mm | 98 | 1638kg | 5T | I-Steel Stent |
| DP-SZKW-400 | 4000mm | 1810mm | 800mm | 540mm | YQZG-400/400mm | 118 | 1964KG | 5T | I-Steel Stent |
| DP-JY-400 | 4030mm | 2040mm | 810mm | 450mm | YQZG-400/400mm | 118 | 1638kg | 5T | I-Steel Stent |
