1180 * 890 * 285mm Rubber Track Undercarriage System With 200kg Load Capcity

China 1180 * 890 * 285mm Rubber Track Undercarriage System With 200kg Load Capcity supplier
1180 * 890 * 285mm Rubber Track Undercarriage System With 200kg Load Capcity supplier 1180 * 890 * 285mm Rubber Track Undercarriage System With 200kg Load Capcity supplier 1180 * 890 * 285mm Rubber Track Undercarriage System With 200kg Load Capcity supplier 1180 * 890 * 285mm Rubber Track Undercarriage System With 200kg Load Capcity supplier 1180 * 890 * 285mm Rubber Track Undercarriage System With 200kg Load Capcity supplier 1180 * 890 * 285mm Rubber Track Undercarriage System With 200kg Load Capcity supplier

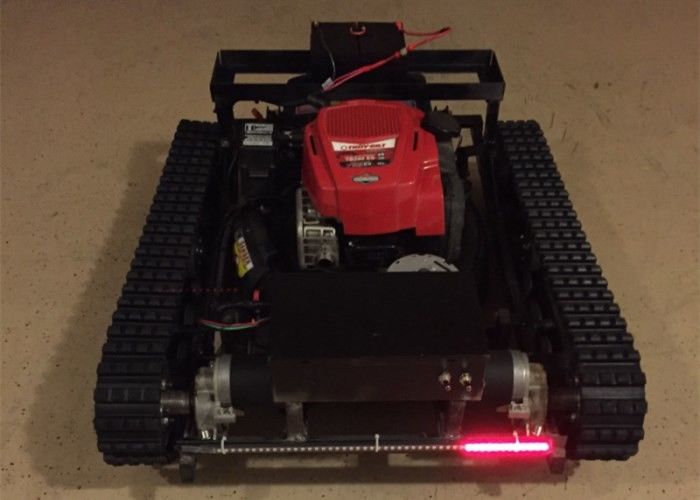

Large Image :  1180 * 890 * 285mm Rubber Track Undercarriage System With 200kg Load Capcity

Product Details:

Place of Origin: Shanghai,China
Brand Name: PY
Certification: ISO9001
Model Number: DP-PY-100

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Bare Packing or Wooden Pallets
Delivery Time: 10-20 days
Payment Terms: T/T, Western Union
Supply Ability: 1000 pcs per month
Contact Now
Detailed Product Description
Length: 1180mm Width: 400mm
Height: 285mm Drive Wheel Diameter: 135mm
Rubber Track Width: Bd-a/100mm Rubber Track Links: 55
Weight: 42kg Load Bearing Weight: 200kg

All the size(except the track width) can be adjusted
Application: moving platform and other vehicle
Warranty:Guarantee one year under normal use





Length
WidthHeightDrive Wheel DiameterTrack WidthWeightLoad bearingSpeed
1180mm894mm285mm135mm100mm42kg200kg-------


Application and Features:
Item: Rubber track undercarriage
Main Parts:Rubber track;construction frame;tensioning screw,drive wheel/sprocket; support wheels,and idler,etc.
Material:Steel,rubber,UHMW-PE(wheels)
Description of the rubber track undercarriage:
1. Wide used on snow blower,paver,dumper,mini excavator,small harvester,anti-fire robot,raw mower,and other small or mid size machine design.
2. Easy for vehicles to run on hill land, mud road, sand ground...
3.Max load only 300kgs,if your idea of design is over 300kgs,please contact us for choosing other models.
4.Application: All terrain/season;
5.Warranty: 12 months
Their choice of operating environment and notice are as follows:
(1) rubber track,temperature is generally between -25 ~ + 55'C.
(2) chemical, oil, sea salt will accelerate the aging track, after use in such an environment, need to clean track.
(3) sharp edge (such as steel, stone, etc.) of the road will cause damage to the rubber track.
(4) the curb of the road, rutted or uneven pavement can cause side edge of the ground track pattern to be cracked, but the rubber track can be used continuously if the inside steel cord has no injuries.
(5)gravel, gravel road will result in abrasion earlier where the idlers connect with the rubber track, and formation of small cracks. Serious water ingress, causing iron core loss, wire breakage.
(6)30 degree slope and 15 degree side slope,for climbing



Electric motor we can supply for this rubber track undercarriage:
Motor is 48V 800W

for one whole set including 2*motor with reducer+1*controller+1*remote control
(not including battery)

Rubber Tracked Chassis, Undercarriage for Small Machine (Size Adjustable)

Rubber Tracks Specification
Type:PY-50AType:PY-50BType:PY-60AType:PY-60B
Link No.54Link No.46Link No.66Link No.50
Pitch:19mmPitch:20mmPitch:12.7mmPitch:18.5mm
Width:50mmWidth:50mmWidth:60mmWidth:60mm
Total length:1026mmTotal length:920mmTotal length:838.2mmTotal length:925mm
Weight:0.5KgWeight:0.5KgWeight:1.2KgWeight:0.44Kg

Type:PY-76Type:PY-80Type:PY-85Type:PY-100A
Link No.120Link No.108Link No.24Link No.50
Pitch:12.7mmPitch:15mmPitch:59.4mmPitch:40mm
Width:76mmWidth:80mmWidth:85mmWidth:100mm
Total length:1524mmTotal length:1620mmTotal length:1425.6mmTotal length:2000mm
Weight:1.92KgWeight:1.2KgWeight:1.92KgWeight:4Kg

Type:PY-100BType:PY-110Type:PY-115Type:PY-118A
Link No.76Link No.32Link No.32Link No.18
Pitch:20mmPitch:42mmPitch:65mmPitch:61mm
Width:100mmWidth:110mmWidth:115mmWidth:118mm
Total length:1520mmTotal length:1344mmTotal length:2080mmTotal length:1098mm
Weight:1.84KgWeight:2.12KgWeight:KgWeight:2.32Kg

Type:PY-118BType:PY-118CType:PY-123Type:PY-130
Link No.20Link No.24Link No.60Link No.28
Pitch:60mmPitch:61mmPitch:40mmPitch:72mm
Width:118mmWidth:118mmWidth:123mmWidth:130mm
Total length:1200mmTotal length:1464mmTotal length:2400mmTotal length:2016mm
Weight:2.44KgWeight:3.9KgWeight:8KgWeight:11.2Kg

Type:PY-135Type:PY-136Type:PY-140Type:PY-148
Link No.72Link No.41Link No.24Link No.36
Pitch:18.5mmPitch:45mmPitch:80mmPitch:60mm
Width:135mmWidth:136mmWidth:140mmWidth:148mm
Total length:1332mmTotal length:1845mmTotal length:1920mmTotal length:2160mm
Weight:1.66KgWeight:3.56KgWeight:5KgWeight:16Kg

Type:PY-150Type:PY-180Type:PY-200Type:PY-255A
Link No.22Link No.42Link No.60Link No.30
Pitch:63.4mmPitch:65mmPitch:61.5mmPitch:72mm
Width:150mmWidth:180mmWidth:200mmWidth:255mm
Total length:1394.8mmTotal length:2730mmTotal length:3690mmTotal length:2160mm
Weight:3.6Kg Weight:20KgWeight:12Kg

Type:PY-255BType:PY-300Type:PY-320Type:PY-350
Link No.35Link No.58Link No.33Link No.53
Pitch:65mmPitch:109mmPitch:87mmPitch:100mm
Width:255mmWidth:300mmWidth:320mmWidth:350mm
Total length:2275mmTotal length:6322mmTotal length:2871mmTotal length:5300mm
Weight:10Kg Weight:22Kg

Type:PY-382Type:PY-400Type:PY-420Type:PY-500
Link No.54Link No.46Link No.58Link No.48
Pitch:64mmPitch:90mmPitch:100mmPitch:63.5mm
Width:382mmWidth:400mmWidth:420mmWidth:500mm
Total length:3456mmTotal length:4140mmTotal length:5800mmTotal length:3048mm
Weight:29Kg  Weight:43.2Kg
