Construction Machinery Track Loader Rubber Tracks 300 * 52.5 * 80 For Case Komatsu

China Construction Machinery Track Loader Rubber Tracks 300 * 52.5 * 80 For Case Komatsu supplier
Construction Machinery Track Loader Rubber Tracks 300 * 52.5 * 80 For Case Komatsu supplier Construction Machinery Track Loader Rubber Tracks 300 * 52.5 * 80 For Case Komatsu supplier Construction Machinery Track Loader Rubber Tracks 300 * 52.5 * 80 For Case Komatsu supplier Construction Machinery Track Loader Rubber Tracks 300 * 52.5 * 80 For Case Komatsu supplier Construction Machinery Track Loader Rubber Tracks 300 * 52.5 * 80 For Case Komatsu supplier

Large Image :  Construction Machinery Track Loader Rubber Tracks 300 * 52.5 * 80 For Case Komatsu

Product Details:

Place of Origin: Shanghai
Brand Name: PY
Certification: ISO9001
Model Number: 300*52.5*80N

Payment & Shipping Terms:

Minimum Order Quantity: 2 PCS
Price: Negotiable
Packaging Details: Pallet with stretch film
Delivery Time: 5-15 days
Payment Terms: T/T, Western Union
Supply Ability: 1000 peices per month
Contact Now
Detailed Product Description
Width: 300mm Pitch: 52.5mm
Link: 80 Overall Length: 4200mm
Weight: 115kg Material: Rubber And Steel
Warranty: 12 Months Under Normal Use


Applicable machines
Excavators
Material rubber and steel
Specification 300*52.5*80N
Installation position Installed on the excavators



Construction Machinery Track Loader Rubber Tracks 300 * 52.5 * 80 For Case Komatsu

The characteristics of rubber tracks

1. Rubber tracks cause less damage to roads than steel tracks, and less rutting on soft

ground than steel tracks

2. A benefit to equipment operating in congested areas, rubber tracks make less noise than

steel tracks

3. Rubber tracks permit machines to travel at a higher speed than steel tracks

4. Rubber tracks insulated machine and operator from vibraion, exteding the service life of

machine and decreasing operator's fatigue

5. The ground pressure of rubbr tracks equipped machinery can be fairly low, about 0.14-2.30

kg/m2, a major reason for its use on wet and soft terrain.

6. The added traction of rubber tracked vehicles permits them to pull twice the load of wheeled

vehicles of the same weight.

7. Rubber tracks' pulling performance being twice that of wheels, it permits the lighter vehicles

equip with rubber track to do the same pulling work than that of wheeled vehicles.


The notices of using rubber tracks

1. Adjust the tension of the rubber crawler so that the height, the variable range is 10-20mm

when the machine is lifted. Readjust when the tension decreases. (Be careful because the

rubber crawler may come off if the tension is too low).

2. Avoid projection from the frame around the rubber crawler, especially on its inner

circumference. (Rubber crawlers are easily deformed; If it comes into contact with the frame,

an accident such the rubber being cut can occur).

3. Avoid sharp projections when traveling.

4. Avoid turning too fast on concrete roads with a high coefficient of frction because this can

cause accidents such as cutting the rubber.

5. Be careful that no oil, etc adheres to the rubber track. If it does, wipe it off immediately.

6. When storing for long periods, keep indoors, away from direct sunshine and rain.

7. Replace as soon as possible when abrasion of sprockets is observed

We also have other kinds of and sizes of rubber tracks, if you have interest in it, do not hesitate

to send me a message and I will be very glad to be at your service.

Looking forward to receiving your enquiry.


Adaptation Models:



MODEL ORIGINAL SIZE
HRE1000 (GAYK) 300X52,5X80
HRE3000 (GAYK) 300X52,5X80
ZX27.3 (HITACHI) 300X52,5X80
RH1.27SR2 (ORENSTEIN E KOPPEL) 300X52,5X80
PZ250 (PEZZOLATO) 300X52,5X80
K35S (TEKNA) 300X52,5X80
AX35.2 (AIRMANN) 300X52,5X80
E26 (BOBCAT) 300X52,5X80
X331E (BOBCAT) 320X52,5X80
CZ25 (CAMS) 300X52,5X80
CX30B (CASE) 300X52,5X80
SOLAR 35 (DAEWOO) 300X52,5X80
DX27Z (DOOSAN) 300X52,5X80
TS30R (EUROTOM) 300X52,5X80
EX27.U2 (HITACHI) 300X52,5X80
ZX27U.2 (HITACHI) 300X52,5X80
ZX29U (HITACHI) 300X52,5X80
ZX29U.3 (HITACHI) 300X52,5X80
ROBEX 27.Z9 (HYUNDAI) 300X52,5X80
PC26MR (KOMATSU) 300X52,5X80
PC26MR.3 (KOMATSU) 300X52,5X80
PC27MR (KOMATSU) 300X52,5X80
PC27MR2 (KOMATSU) 300X52,5X80
PC27MRX (KOMATSU) 300X52,5X80
PC27R.8 (KOMATSU) 300X52,5X80
PC28.1 (KOMATSU) 300X52,5X80
PC28UU.2 (KOMATSU) 300X52,5X80
PC28UU.3 (KOMATSU) 300X52,5X80
K028 (KUBOTA) 300X52,5X80
K030 (KUBOTA) 300X52,5X80
KX021UR (KUBOTA) 300X52,5X80
TS30R (NAGANO) 300X52,5X80
3000 (NEUSON) 300X52,5X80
3200RD (NEUSON) 300X52,5X80
3402 (NEUSON) 300X52,5X80
3602 (NEUSON) 300X52,5X80
3602RD (NEUSON) 300X52,5X80
3602RD FORCE (NEUSON) 300X52,5X80
3602RD SLR (NEUSON) 300X52,5X80
MM30 (CATERPILLAR) 300X52,5X80
MM30B (CATERPILLAR) 300X52,5X80
MM30CR (CATERPILLAR) 300X52,5X80
MM30SR (CATERPILLAR) 300X52,5X80
MM30T (CATERPILLAR) 300X52,5X80
30J (IHI) 300X52,5X80
30UJ (IHI) 300X52,5X80
30Z (IHI) 300X52,5X80
30J (IMER) 300X52,5X80
30UJ (IMER) 300X52,5X80
30Z (IMER) 300X52,5X80
CT30N (IWAFUJI) 300X52,5X80
KX030 (KUBOTA) 300X109X39
MM30 (MITSUBISHI) 300X52,5X80
MM30B (MITSUBISHI) 300X52,5X80
MM30CR (MITSUBISHI) 300X52,5X80
MM30SR (MITSUBISHI) 300X52,5X80
MM30T (MITSUBISHI) 300X52,5X80
LS850UXJ (SUMITOMO) 300X52,5X80
LS850UXJ2 (SUMITOMO) 300X52,5X80
LS900FXJ2 (SUMITOMO) 300X52,5X80
LS900FXJ3 (SUMITOMO) 300X52,5X80
SH30J (SUMITOMO) 300X52,5X80
SH30U (SUMITOMO) 300X52,5X80
SH30UJ (SUMITOMO) 300X52,5X80
SH30UJ2 (SUMITOMO) 300X52,5X80
SH30UJ3 (SUMITOMO) 300X52,5X80

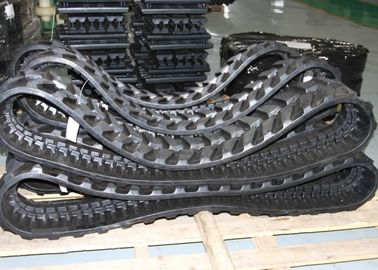

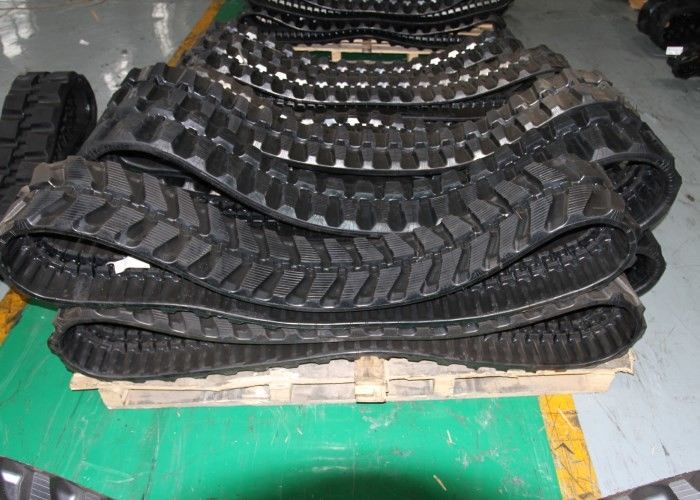

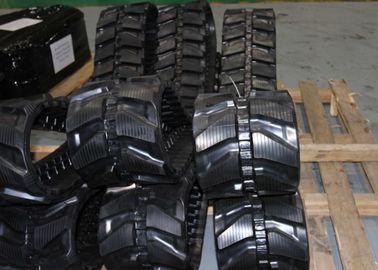

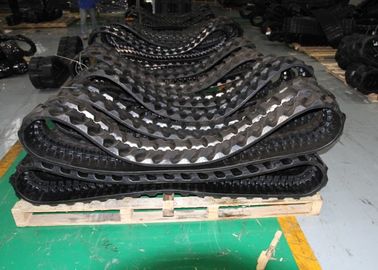

Warehouse:



Construction Machinery Track Loader Rubber Tracks 300 * 52.5 * 80 For Case Komatsu
