Agricultural Snowmobile Rubber Track 140mm Width For Robot / Motorcycle Systems

China Agricultural Snowmobile Rubber Track 140mm Width For Robot / Motorcycle Systems supplier
Agricultural Snowmobile Rubber Track 140mm Width For Robot / Motorcycle Systems supplier Agricultural Snowmobile Rubber Track 140mm Width For Robot / Motorcycle Systems supplier Agricultural Snowmobile Rubber Track 140mm Width For Robot / Motorcycle Systems supplier

Large Image :  Agricultural Snowmobile Rubber Track 140mm Width For Robot / Motorcycle Systems

Product Details:

Place of Origin: CHINA
Brand Name: PY
Certification: ISO9001
Model Number: 140*80*36

Payment & Shipping Terms:

Minimum Order Quantity: 2 pcs
Price: Negotiable
Packaging Details: Pallet
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 5000 pcs per month
Contact Now
Detailed Product Description
Width: 140mm Pitch: 80mm
Link: 36 Weight: 10kg/pc
Overall Length: 2880mm Material: Rubber/steel

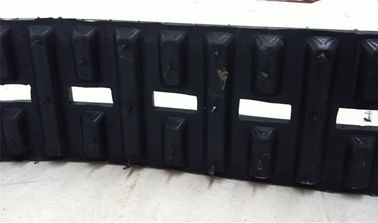

(140mm) Rubber Tracks 140*80*36 for Robot/ Motorcycle Systems



Commodity: Agricultural rubber track

Size: 140*80*36

Width: 140mm

Pitch: 80mm

Link: 36

Length: 2880mm

Weigth: 10KG

Link and Length can be adjustable

Application: Mainly used in small agricultural machinery and other model

number can be used in Snowblower/Snowmobile, Robot, Wheelchair,

(mini)Excavators,Track loaders, Pitch Paver,dumpers...Etc.

Warranty: Guarantee one year under normal use


Application and Features:

1. Suitable for the small wheelchair.

2. Can load weight about300-400KG

3. Length can be adjusted.

4. Sprocket is available.

Characteristics of rubber track:

1). Less damage to the ground surface

2). Low noise

3). High running speed

4). Less vibration;

5). Low ground contack specific pressure

6). High tractive force

7). Light weight

8). Easy to change


Rubber Tracks Specification
Type:PY-50A Type:PY-50B Type:PY-60A Type:PY-60B
Link No.54 Link No.46 Link No.66 Link No.50
Pitch:19mm Pitch:20mm Pitch:12.7mm Pitch:18.5mm
Width:50mm Width:50mm Width:60mm Width:60mm
Total length:1026mm Total length:920mm Total length:838.2mm Total length:925mm
Weight:0.5Kg Weight:0.5Kg Weight:1.2Kg Weight:0.44Kg

Type:PY-76 Type:PY-80 Type:PY-85 Type:PY-100A
Link No.120 Link No.108 Link No.24 Link No.50
Pitch:12.7mm Pitch:15mm Pitch:59.4mm Pitch:40mm
Width:76mm Width:80mm Width:85mm Width:100mm
Total length:1524mm Total length:1620mm Total length:1425.6mm Total length:2000mm
Weight:1.92Kg Weight:1.2Kg Weight:1.92Kg Weight:4Kg

Type:PY-100B Type:PY-110 Type:PY-115 Type:PY-118A
Link No.76 Link No.32 Link No.32 Link No.18
Pitch:20mm Pitch:42mm Pitch:65mm Pitch:61mm
Width:100mm Width:110mm Width:115mm Width:118mm
Total length:1520mm Total length:1344mm Total length:2080mm Total length:1098mm
Weight:1.84Kg Weight:2.12Kg Weight:Kg Weight:2.32Kg

Type:PY-118B Type:PY-118C Type:PY-123 Type:PY-130
Link No.20 Link No.24 Link No.60 Link No.28
Pitch:60mm Pitch:61mm Pitch:40mm Pitch:72mm
Width:118mm Width:118mm Width:123mm Width:130mm
Total length:1200mm Total length:1464mm Total length:2400mm Total length:2016mm
Weight:2.44Kg Weight:3.9Kg Weight:8Kg Weight:11.2Kg

Type:PY-135 Type:PY-136 Type:PY-140 Type:PY-148
Link No.72 Link No.41 Link No.24 Link No.36
Pitch:18.5mm Pitch:45mm Pitch:80mm Pitch:60mm
Width:135mm Width:136mm Width:140mm Width:148mm
Total length:1332mm Total length:1845mm Total length:1920mm Total length:2160mm
Weight:1.66Kg Weight:3.56Kg Weight:5Kg Weight:16Kg

Type:PY-150 Type:PY-180 Type:PY-200 Type:PY-255A
Link No.22 Link No.42 Link No.60 Link No.30
Pitch:63.4mm Pitch:65mm Pitch:61.5mm Pitch:72mm
Width:150mm Width:180mm Width:200mm Width:255mm
Total length:1394.8mm Total length:2730mm Total length:3690mm Total length:2160mm
Weight:3.6Kg   Weight:20Kg Weight:12Kg

Type:PY-255B Type:PY-300 Type:PY-320 Type:PY-350
Link No.35 Link No.58 Link No.33 Link No.53
Pitch:65mm Pitch:109mm Pitch:87mm Pitch:100mm
Width:255mm Width:300mm Width:320mm Width:350mm
Total length:2275mm Total length:6322mm Total length:2871mm Total length:5300mm
Weight:10Kg   Weight:22Kg

Type:PY-382 Type:PY-400 Type:PY-420 Type:PY-500
Link No.54 Link No.46 Link No.58 Link No.48
Pitch:64mm Pitch:90mm Pitch:100mm Pitch:63.5mm
Width:382mm Width:400mm Width:420mm Width:500mm
Total length:3456mm Total length:4140mm Total length:5800mm Total length:3048mm
Weight:29Kg     Weight:43.2Kg
