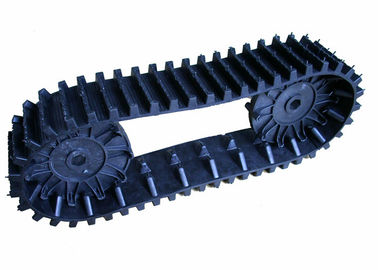

118mm Width Lightweight Robot Rubber Tracks Dial Type Adjustable Length

China 118mm Width Lightweight Robot Rubber Tracks Dial Type Adjustable Length supplier
118mm Width Lightweight Robot Rubber Tracks Dial Type Adjustable Length supplier 118mm Width Lightweight Robot Rubber Tracks Dial Type Adjustable Length supplier 118mm Width Lightweight Robot Rubber Tracks Dial Type Adjustable Length supplier

Large Image :  118mm Width Lightweight Robot Rubber Tracks Dial Type Adjustable Length

Product Details:

Place of Origin: CHINA
Brand Name: PY
Certification: ISO9001
Model Number: BD-A

Payment & Shipping Terms:

Minimum Order Quantity: 2 pcs
Price: Negotiable
Packaging Details: Carton
Delivery Time: 7 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000 pcs oer month
Contact Now
Detailed Product Description
Width: 118mm Pitch: 61mm
Link: 24 Overall Length: 1464mm
Weight: 3.9KG Internal Tooth Type: Dial Type

118mm Width Robot Rubber Track for Testability (suitable wheels available)



Characteristics of rubber track:
1). Less damage to the ground surface
2). Low noise
3). High tractive force
4). Less vibration;
5). Low ground contack specific pressure
6). High running speed
7). Light weight
8). Easy to change





About Us:
Quality Control for the Rubber track:
1. Raw material Inspection/Examination; Purchased Parts Inspection(Including All Purchased Material)
2. Production Procedure Audit/Examination(Entire Procedure Control)
3. Products Audits/Examination(Strict inspection according to customer's request)
4. Ex works Inspection

Our plant mainly produce Rubber Track which are specially good use for these
kind of Machine:
Snowbower/Snowmobile, Robot, Wheelchair, (mini)Excavators, Track loaders,
Pitch Paver, Agricultural harvester, Dumpers...Etc.



118mm Width Robot Rubber Track for Testability (suitable wheels available)


Link limit : no
Sprocket thickness : 60mm
Supporting wheel thickness :30mm



Warm Notice:


The robot rubber track length can be adjusted according to your needs,so lease send us width and overall length of the rubber track you need,then we can make a recommandation to you. We can aslo supply wheels for the rubber track,if you also need please tell us the diameter you want.




Application and Features of the rubber track:
1. Suitable for the robot or small machine.
2. Length can be adjusted.
3. Sprocket and support wheels is available.


Parameters:

Rubber Tracks Specification
Type:PY-50A Type:PY-50B Type:PY-60A Type:PY-60B
Link No.54 Link No.46 Link No.66 Link No.50
Pitch:19mm Pitch:20mm Pitch:12.7mm Pitch:18.5mm
Width:50mm Width:50mm Width:60mm Width:60mm
Total length:1026mm Total length:920mm Total length:838.2mm Total length:925mm
Weight:0.5Kg Weight:0.5Kg Weight:1.2Kg Weight:0.44Kg

Type:PY-76 Type:PY-80 Type:TH-85 Type:PY-100A
Link No.120 Link No.108 Link No.24 Link No.50
Pitch:12.7mm Pitch:15mm Pitch:59.4mm Pitch:40mm
Width:76mm Width:80mm Width:85mm Width:100mm
Total length:1524mm Total length:1620mm Total length:1425.6mm Total length:2000mm
Weight:1.92Kg Weight:1.2Kg Weight:1.92Kg Weight:4Kg

Type:PY-100B Type:PY-110 Type:PY-115 Type:PY-118A
Link No.76 Link No.32 Link No.32 Link No.18
Pitch:20mm Pitch:42mm Pitch:65mm Pitch:61mm
Width:100mm Width:110mm Width:115mm Width:118mm
Total length:1520mm Total length:1344mm Total length:2080mm Total length:1098mm
Weight:1.84Kg Weight:2.12Kg Weight:Kg Weight:2.32Kg

Type:PY-118B Type:PY-118C Type:PY-123 Type:PY-130
Link No.20 Link No.24 Link No.60 Link No.28
Pitch:60mm Pitch:61mm Pitch:40mm Pitch:72mm
Width:118mm Width:118mm Width:123mm Width:130mm
Total length:1200mm Total length:1464mm Total length:2400mm Total length:2016mm
Weight:2.44Kg Weight:3.9Kg Weight:8Kg Weight:11.2Kg

Type:PY-135 Type:PY-136 Type:PY-140 Type:PY-148
Link No.72 Link No.41 Link No.24 Link No.36
Pitch:18.5mm Pitch:45mm Pitch:80mm Pitch:60mm
Width:135mm Width:136mm Width:140mm Width:148mm
Total length:1332mm Total length:1845mm Total length:1920mm Total length:2160mm
Weight:1.66Kg Weight:3.56Kg Weight:5Kg Weight:16Kg

Type:PY-150 Type:PY-180 Type:PY-200 Type:PY-255A
Link No.22 Link No.42 Link No.60 Link No.30
Pitch:63.4mm Pitch:65mm Pitch:61.5mm Pitch:72mm
Width:150mm Width:180mm Width:200mm Width:255mm
Total length:1394.8mm Total length:2730mm Total length:3690mm Total length:2160mm
Weight:3.6Kg   Weight:20Kg Weight:12Kg




About Us:
Quality Control for the Rubber track:
1. Raw material Inspection/Examination; Purchased Parts Inspection(Including All Purchased Material)
2. Production Procedure Audit/Examination(Entire Procedure Control)
3. Products Audits/Examination(Strict inspection according to customer's request)
4. Ex works Inspection

Our plant mainly produce Rubber Track which are specially good use for these
kind of Machine:
Snowbower/Snowmobile, Robot, Wheelchair, (mini)Excavators, Track loaders,
Pitch Paver, Agricultural harvester, Dumpers...Etc.


Supporting wheel/Sprocket picture :

118mm Width Lightweight Robot Rubber Tracks Dial Type Adjustable Length


Inner 3D drawing :
118mm Width Lightweight Robot Rubber Tracks Dial Type Adjustable Length
