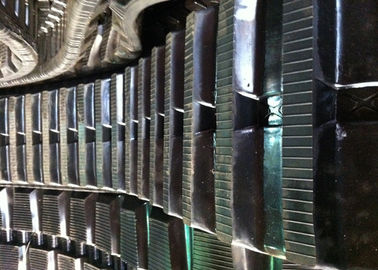

56 Link Yanmar Rubber Tracks Less Vibration With Joint Free Track Structure

56 Link Yanmar Rubber Tracks Less Vibration With Joint Free Track Structure
56 Link Yanmar Rubber Tracks Less Vibration With Joint Free Track Structure 56 Link Yanmar Rubber Tracks Less Vibration With Joint Free Track Structure 56 Link Yanmar Rubber Tracks Less Vibration With Joint Free Track Structure

Large Image :  56 Link Yanmar Rubber Tracks Less Vibration With Joint Free Track Structure

Product Details:
Place of Origin: CHINA
Brand Name: PY
Certification: ISO9001
Model Number: 320X90X56
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pcs
Price: Negotiable
Packaging Details: Pallet with film
Delivery Time: 15-20 days
Payment Terms: T/T
Supply Ability: 5000 Pcs per month
Detailed Product Description
Width: 320mm Pitch: 90mm
Link: 56 Material: Rubber And Steel
Overall Length: 5040mm Weight: 159.6kg
High Light:

continuous rubber track

,

mini crawler tracks



Yanmar C25R / C30R Dumper Rubber Tracks 320mm width and 56 links



1. Specification for the rubber track



Track width Pitch Length Number of Links Guiding type
320 90 56 A2 type





2. Application :Dumper Machine



(Size need to be carefully confirmed before purchase,below is only for reference )



MODEL ORIGINAL SIZE REPLACEMENT SIZE ROLLER
45C (CME) 320X90X64 320X90X64 A2
S25 (AUSA) 320X90X58 320X90X58 A2
S25 (AUSA) 320X90X58 320X90X58 A2
S25 (AUSA) 320X90X58 320X90X58 A2
250R (CANYCOM) 320X90X58 320X90X58 A2
S25A (CANYCOM) 320X90X58 320X90X58 B2
525A (CHIKUSUI) 320X90X58 320X90X58 A2
BFY3301 (CHIKUSUI) 320X90X58 320X90X58 A2
SE 3801 (CHIKUSUI) 320X90X58 320X90X58 A2
280 (HUKI) 320X90X58 320X90X58 A2
IC30 (IHI) 320X90X58 320X90X58 A2
CD23 (KOMATSU) 320X90X58 320X90X58 A1
KC250HR (KUBOTA) 320X90X58 320X90X58 A2
S25 (MAWECO) 320X90X58 320X90X58 A2
S25 (MAWECO) 320X90X58 320X90X58 A2
TCH2500(MESSERSI) 320X90X58 320X90X58 A2
RG30 (KUBOTA) 320X90X56 320X90X56 A2
WB2500(WINBULL) 320X90X56 320X90X56 A2
WB2500(YAMAGUCHI) 320X90X56 320X90X56 A2
C12RB (YANMAR) 320X90X56 320X90X56 A2
C25R (YANMAR) 320X90X56 320X90X56 A2
C30R (YANMAR) 320X90X56 320X90X56 A2
C30R.1 (YANMAR) 320X90X56 320X90X56 A2
C30R2B (YANMAR) 320X90X56 320X90X56 A2
C30RY.1 (YANMAR) 320X90X56 320X90X56 A2
YFW25 (YANMAR) 320X90X56 320X90X56 A2
YFW25R (YANMAR) 320X90X56 320X90X56 A2
C20R (YANMAR) 320X90X52 320X90X52 A2
RT300 (HANIX) 320X90X47 320X90X47 A2
RT300(NISSAN) 320X90X47 320X90X47 A2



3. Future of rubber track:
(1). Less vibration
Rubber tracks insulate machine and operator from vibration, extending the machine's lifetime and lowering operate fatigue.
(2). Low ground pressure
The ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30 kg/ cmm, a major reason for its use on the wet and soft terrain.
(3). Superior traction
The added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles of the sane weight.




4.Extreme Durability & Performance



Our joint free track structure, Special designed tread pattern, 100% virgin rubber,and one piece forging insert steel result extreme durability & performance and longer service life for construction equipment use. Tracks perform a high level of reliability and quality with our latest technology in mold tooling and rubber formulation.


5. Packaging & Delivery
1). Packing: Bare package or Pallet
2). Delivery time: 15days for 2 PCS
56 Link Yanmar Rubber Tracks Less Vibration With Joint Free Track Structure 0

56 Link Yanmar Rubber Tracks Less Vibration With Joint Free Track Structure 1



6. Warranty

Guarantee one year under normal use.

Rubber Tracks are not warranted against wear and tear, misuse, damage caused by
non-recommended working conditions including but not limited to use on demolition sites or
other site where track damage is likely due to rubble, concrete, metal etc, use in water, worn
undercarriage components or improper track adjustment.



7. Other condiation
1). MOQ: 2 Pieces
2). Supply Ability: 5000 Pcs/Month
3). Brand: OEM is ok
4). Color: Black



8. Dumper Size available for 320mm



SIZE(WIDTH*PITCH) LINK A B C D F PATTERN GUIDING
300*84N 42-56 22 60 31.5 29 28 AP A2
320*90 52-56 32 86 50 35 28 AA A2
U320*90 56-76 37 85 47 32 29 AA A2
320*100 38-54 29 74 30 25 23 BN A2
320*100W 37-65 38 80 34 25 22 CD A2
