18"x6"x53 Agricultural Rubber Track for Challenger 35/45/55 Tractor Track Width 18"

18"x6"x53 Agricultural Rubber Track for Challenger 35/45/55 Tractor Track Width 18"
18"x6"x53 Agricultural Rubber Track for Challenger 35/45/55 Tractor Track Width 18"

Large Image :  18"x6"x53 Agricultural Rubber Track for Challenger 35/45/55 Tractor Track Width 18"

Product Details:
Place of Origin: China
Brand Name: Pooyert
Certification: ISO 9001
Model Number: 470x152.4x53
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wood Pallet or Bare Packaging
Delivery Time: 10-20 work days
Payment Terms: T/T
Supply Ability: 5000pcs per months
Detailed Product Description
Commodity: Rubber Track Application: Asphalt Paver
Size: 470x152.4x53 Length: 152.4x53=8077.2mm(318")
Links(No. Of Drive Lugs/Teeth): 53 Net Weight: 332kg/pc
Pattern: Smooth Or Engraved MOQ: 1pc
Material: Imported Natural Rubber And Steel Warranty: 12 Months Under Normal Use
Highlight:

18'' Agricultural Rubber Track

,

18''x6''x53'' Agricultural Rubber Track

,

Challenger 35/45/55 Agricultural Rubber Track

18"x6"x53 Agricultural Rubber Track for Challenger 35/45/55




Product Description



Size 470*152.4*53
Outer Pattern Smooth Pattern or Engraved Pattern
Width 470mm(18")
Pitch Length 152.4mm(6")
No. of Link 53
Length 152.4x53=8077.2mm(318")
Net Weight 332kg/pc
Material Rubber and Steel
Warranty Guaranteed 12 Months under Normal Use
MOQ 1 piece
Delivery Time 25 working days generally, depends on the order quantity.
Condition 100% New
OEM Supported
HS CODE 843149




If you are not clear about what width/pitch/link stands for, please have a look at the following picture.

18"x6"x53 Agricultural Rubber Track for Challenger 35/45/55 Tractor Track Width 18" 0




Product Pictures

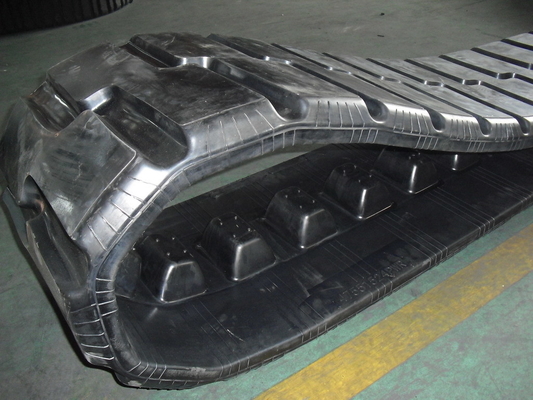

1.Smooth Pattern

18"x6"x53 Agricultural Rubber Track for Challenger 35/45/55 Tractor Track Width 18" 1

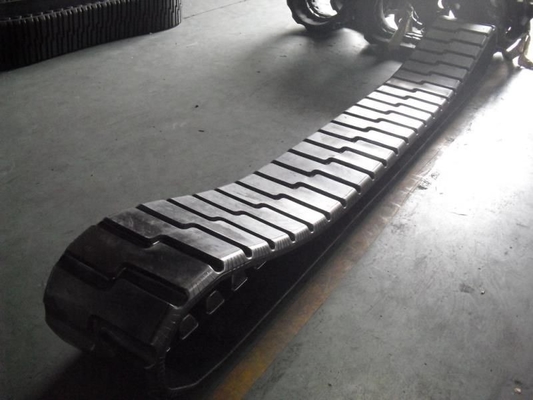

2.Engraved Pattern

18"x6"x53 Agricultural Rubber Track for Challenger 35/45/55 Tractor Track Width 18" 2

18"x6"x53 Agricultural Rubber Track for Challenger 35/45/55 Tractor Track Width 18" 3


Delivery and Packing

1.Delivery

The lead time is normally around 25-30 working days if out of stock. Delivery time might get longer if the quantity is large.



2.Packing

Generally, the rubber tracks are packed with wooden pallet with plastic film wrapped outside.

Nude packing is also applied for orders in containers to save space.

18"x6"x53 Agricultural Rubber Track for Challenger 35/45/55 Tractor Track Width 18" 4

18"x6"x53 Agricultural Rubber Track for Challenger 35/45/55 Tractor Track Width 18" 5




Inner Structure

18"x6"x53 Agricultural Rubber Track for Challenger 35/45/55 Tractor Track Width 18" 6


Features



(1). Less round damage
Rubber tracks cause less damage to roads than steel tracks, and less rutting of soft ground than either Steel tracks of wheel products.

(2). Low noise
A benefit to equipment operating in congested areas, rubber track products less noise than steel tracks.

(3). High speed
Rubber track permit machines to travel at a higher speed than steel tracks.

(4). Less vibration
Rubber tracks insulate machine and operator from vibration, extending the machine's lifetime and Lowering operate fatigue.

(5). Low ground pressure
The ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30 kg/ CMM, A major reason for its use on the wet and soft terrain.

(6). Superior traction
The added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles of the Sane weight.


How to Extend the Service Life of Rubber Tracks



Rubber track's pulling perofrmance being twice that of wheels . it permits the lighter vehicles the same weight .

The notices of using rubber tracks

1. Adjust the tension of the rubber crawler so that the height, the variable range is 10-20mm when the machine is lifted. Readjust when the tension decreases. (Be careful because the rubber crawler may come off if the tension is too low).

2. Avoid projection from the frame around the rubber crawler, especially on its inner circumference. (Rubber crawlers are easily deformed; If it comes into contact with the frame, an accident such the rubber being cut can occur).

3. Avoid sharp projections when traveling.

4. Avoid turning too fast on concrete roads with a high coefficient of frction because this can cause accidents such as cutting the rubber.

5. Be careful that no oil, etc adheres to the rubber track. If it does, wipe it off immediately.

6. When storing for long periods, keep indoors, away from direct sunshine and rain.

7. Replace as soon as possible when abrasion of sprockets is observed.

 ​



Paver Rubber Track with Other Sizes



1. 460x225x36

18"x6"x53 Agricultural Rubber Track for Challenger 35/45/55 Tractor Track Width 18" 7



2. 356x152.4x42

18"x6"x53 Agricultural Rubber Track for Challenger 35/45/55 Tractor Track Width 18" 8



3. 483x152.4x52

18"x6"x53 Agricultural Rubber Track for Challenger 35/45/55 Tractor Track Width 18" 9
