460x225x36 Asphalt Paver Rubber Track Rubber Crawler Construction Machinery Parts

Certification
China Shanghai Puyi Industrial Co., Ltd. certification
China Shanghai Puyi Industrial Co., Ltd. certification
I'm Online Chat Now

460x225x36 Asphalt Paver Rubber Track Rubber Crawler Construction Machinery Parts

460x225x36 Asphalt Paver Rubber Track Rubber Crawler Construction Machinery Parts
460x225x36 Asphalt Paver Rubber Track Rubber Crawler Construction Machinery Parts

Large Image :  460x225x36 Asphalt Paver Rubber Track Rubber Crawler Construction Machinery Parts

Product Details:
Place of Origin: China
Brand Name: POOYERT
Certification: ISO 9001
Model Number: 460x225x36
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wood Pallet or Bare Packaging
Delivery Time: 10-20 work days
Payment Terms: T/T
Supply Ability: 5000pcs per months
Detailed Product Description
Material: Imported Natural Rubber And Steel Warranty: 1 Year Under Normal Use
Weight: 281kg/pc Perimeter: 8100mm
Application: Asphalt Paver Links: 36
Color: Black Commodity Name: Paver Rubber Track
Highlight:

Asphalt Paver Rubber Track

,

460x225x36 Rubber Track

,

Construction Machinery Parts Rubber Track

Asphalt Paver Rubber Track 460*225*36


Production Information:



Size 460*225*36
Width 460mm
Pitch Length 225mm
No. of Link 36
Length 225x36=8100mm
Net Weight 281kg/pc
Material rubber and steel
Warranty 12 months under normal use
MOQ 2 pieces
Delivery Time 15-25 working days

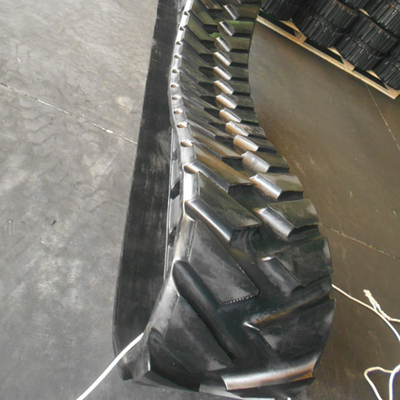

460x225x36 Asphalt Paver Rubber Track Rubber Crawler Construction Machinery Parts 0


Packing images:

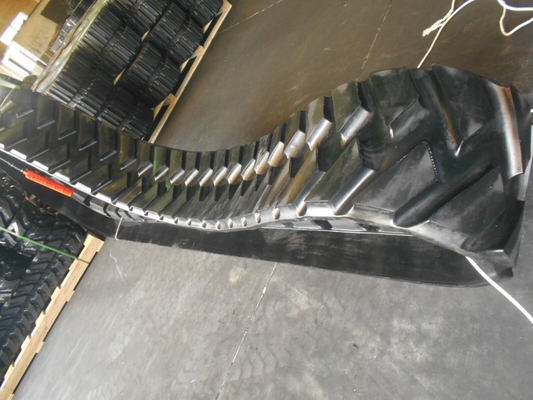

460x225x36 Asphalt Paver Rubber Track Rubber Crawler Construction Machinery Parts 1

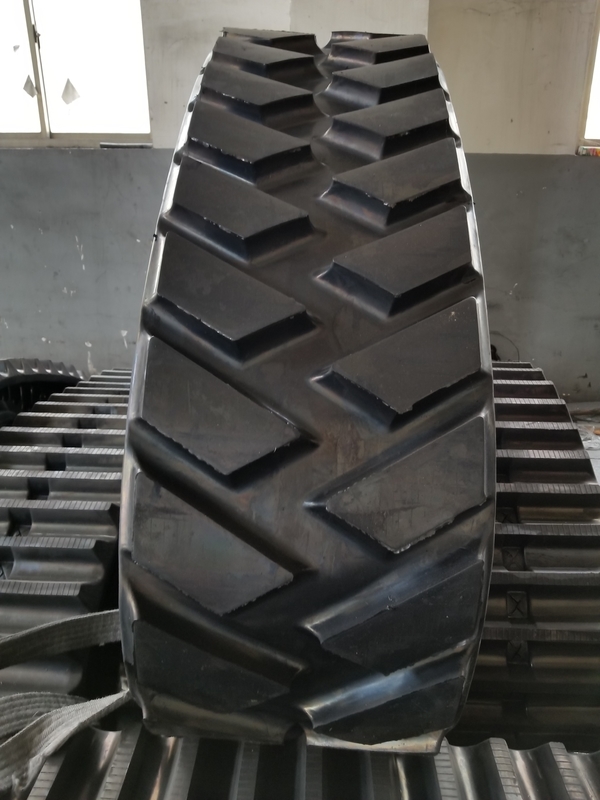

460x225x36 Asphalt Paver Rubber Track Rubber Crawler Construction Machinery Parts 2


About us :

We are Shanghai Puyi Industrial Co.,Ltd located in Shanghai China.



The rubber tracks we manufactured can be used on lots of construction machineries, such as excavators, skid steer loader,



asphalt pavers, harvesters, large tractors; and also for small machinese, such as robot, small undercarriages, lawnmowers and



so on.



Type of rubber tracks:

1). Continuous rubber track

2). Conventional type or interchangeable type rubber track

3). Warranty: Guarantee one year under normal use

4). Application: Mini-excavator, bulldozer, dumper, crawler loader, crawler crane, crawler carrier vehicle, Agriculture machinery, paver and other special machine


The feature of rubber tracks:

(1). Less round damage
Rubber tracks cause less damage to roads than steel tracks, and less rutting of soft ground than either Steel tracks of wheel products.

(2). Low noise
A benefit to equipment operating in congested areas, rubber track products less noise than steel tracks.

(3). High speed
Rubber track permit machines to travel at a higher speed than steel tracks.

(4). Less vibration
Rubber tracks insulate machine and operator from vibration, extending the machine's lifetime and Lowering operate fatigue.

(5). Low ground pressure
The ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30 kg/ CMM, A major reason for its use on the wet and soft terrain.

(6). Superior traction
The added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles of the Sane weight.



Rubber Tracks are available for all mini excavators, compact track loaders and tracked carriers.

Our replacement undercarriage parts include a fully stocked line of sprockets, rollers and idlers, manufactured to the highest quality control standards.
Size Weight for Each Link Size Weight for Each Link Size Weight for Each Link
130*72 0.36 WD300*72 1.459 400*144 7.75
150*60 0.52 B300*84 2.88 400*144Y 7.41
150*72 0.55 T300*86 3.13 420*100 5.3
170*60 0.48 300*109KW 3.38 450*71 4.45
180*60 0.56 K300*109 3.56 DW450*71 4.82
180*72 0.64 300*109N 3.32 450*73.5 4.57
180*72K 0.87 300*109W 3.21 450*76 5.27
H180*72 0.77 320*52.5 1.69 450*81.5 5.24
190*60 0.59 320*54 1.81 450*81N 5.19
190*60 0.59 B320*84 2.95 450*81W 5.02
190*72 0.72 B320*86 2.99 450*83.5 5.47
200*72 0.84 B320*86SB 2.99 450*83.5Y 5.67
200*72K 1.07 B320*86C 3.01 450*84 4.22
230*48 0.87 B320*86Z 3.12 B450*86 4.33
230*48K 1.06 B320*86CM 3.01 B450*86SB 4.3
230*72 1.09 B320*86R 2.99 B450*86C 4.31
230*72K 1.34 T320*86 3.22 B450*86Z 4.51
230*96 1.77 T320*86MB 3.3 B450*86CM 4.37
230*101 1.92 T320*86SB 3.27 B450*86R 4.3
250*47 1.11 T320*86C 3.25 450*90 4.07
250*48.5 1.13 T320*86Z 3.53 KU450*90 3.9
250*52.5 1.04 320*90 2.85 450*110 6.9
250*52.5K 1.31 320*100 2.67 T450*100MB 5.3
250*72 1.17 320*100W 3.01 T450*100 5.09
B250*72 1.03 320*106 3.63 T450*100SB 5.16
250*96 2.21 350*52.5 1.85 T450*100C 5.2
250*109 2.39 350*54.5 2.31 T450*100Z 5.55
260*55.5 1.48 350*56 2.05 450*163 10.47
260*96 1.91 350*75.5 3.58 485*92W 7.62
260*109 2.16 350*90 1.85 500*71 7.5
280*72 1.43 350*100 3.69 500*90 5.38
280*106 3.05 350*108 3.92 500*92 7.81
300*52.5KB 1.67 350*109 4.12 500*92W 8.6
300*52.5KW 1.71 370*107 4.68 500*100 6.34
300*52.5N 1.44 400*72.5KB 3.44 500*146 9.97
300*52.5W 1.56 400*72.5KW 3.72 600*100 8.3
JD300*52.5N 1.54 400*72.5N 3.48 600*125 10.39
K300*52.5 1.72 400*72.5W 3.85 650*110 13.34
KB300*52.5N 1.55 400*72.5Y 3.62 650*120 13.75
300*53 1.81 400*74 3.4 650*125 15.8
300*55 1.88 400*75.5 4.09 700*100 10.9
300*55.5 1.95 400*86 4.14 700*125 14.29
300*71 3.31 400*90 2.22 750*150 21.34
300*72 1.77 400*107 4.95 800*125 19.14
    400*142 7.12 K800*150 21.55
ASV TRACK       M800*150 20.05
280*102*37 1.36 PAVER TRACK   900*150 31.23
380*102*42 1.9 356*152.4*46 4.81 1000*150 33.3
460*102*51 2.41 483*152.4*52 6.07
460*102*56 2.49 460*225*36 7.79 SPECIAL TRACK
460*102C*51 2.44     6"*3.5"*28 0.41
510*102*51 2.6     10"*3.5"*28 0.51





Workhouse&Warehouse
460x225x36 Asphalt Paver Rubber Track Rubber Crawler Construction Machinery Parts 3



460x225x36 Asphalt Paver Rubber Track Rubber Crawler Construction Machinery Parts 4

460x225x36 Asphalt Paver Rubber Track Rubber Crawler Construction Machinery Parts 5460x225x36 Asphalt Paver Rubber Track Rubber Crawler Construction Machinery Parts 6
