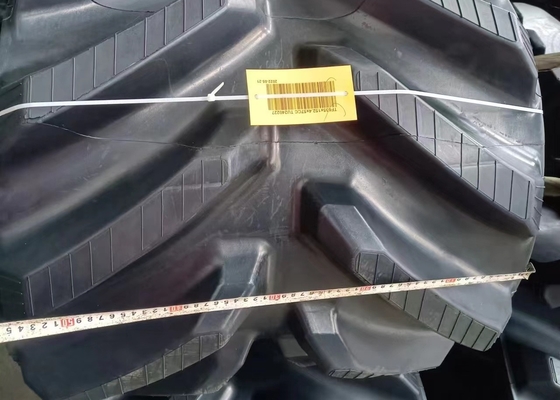

TF635 X 152.4 X 57CC Agricultural Rubber Track For Tractors

Certification
China Shanghai Puyi Industrial Co., Ltd. certification
China Shanghai Puyi Industrial Co., Ltd. certification
I'm Online Chat Now

TF635 X 152.4 X 57CC Agricultural Rubber Track For Tractors

TF635 X 152.4 X 57CC Agricultural Rubber Track For Tractors
TF635 X 152.4 X 57CC Agricultural Rubber Track For Tractors

Large Image :  TF635 X 152.4 X 57CC Agricultural Rubber Track For Tractors

Product Details:
Place of Origin: China
Brand Name: PUYI
Certification: ISO 9001
Model Number: TF635X152.4X57CC
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wood Pallet or Bare Packaging
Delivery Time: 10-20 work days
Payment Terms: T/T
Supply Ability: 5000pcs per months
Detailed Product Description
Material: Rubber And Steel Warranty: 12 Months
Weight: 455kg Perimeter: 8686.8mm
Application: Tractor/agricultural Machinery Links: 57(adjustable)
Color: Black Paking: Film And Pallet
High Light:

Tractors Continuous Rubber Track

,

Agricultural Rubber Track 152.4

,

Agricultural Harvester Rubber Tracks

TF635X152.4X57CC Agricultural Rubber Track for Tractors


Production Information:

Size:635x152.4x57

Width:635mm(25")
Pitch Length:152.4mm(6")
Link Number:57

Length:8686.8mm(342")
Material: rubber, steel
Aplication: tractor and other agricultural machine
Warranty: Guarantee 12 months under normal use.

(PS: Link and lenght can be adjusted on requirements)


Rubber track for tractor, agricultural rubber crawler, harvester rubber belt track (635x152.4x57):

1. Small order is acceptable

2. Fast delivery time

3. Advanced technique and p
rofessional technical personnel

4. Conventional type or interchangeable type rubber track

5. Application:tractors and other agricultural machine

6. The gap between iron cores is very small so that can support the track roller completely during driving, reduces the shock between machine and rubber track.

7. The length can be adjusted to meet your needs. You can use this model on robot, rubber track chassis.
Any problem please contact with me.

TF635 X 152.4 X 57CC Agricultural Rubber Track For Tractors 0


Packing:
TF635 X 152.4 X 57CC Agricultural Rubber Track For Tractors 1

TF635 X 152.4 X 57CC Agricultural Rubber Track For Tractors 2

TF635 X 152.4 X 57CC Agricultural Rubber Track For Tractors 3


How to confirm the rubber track size:
TF635 X 152.4 X 57CC Agricultural Rubber Track For Tractors 4TF635 X 152.4 X 57CC Agricultural Rubber Track For Tractors 5
Or you can tell us the brand and model of your machine, we will try to figure out the sizes of the rubber track.



​Rubber track size list:



Width*Pitch length(mm)

Number of Links

Width*Pitch length(mm)

Number of Links

Width*Pitch length(mm)

Number of Links

130*72

28-53

300*52.5K

72-84

400*72.5KW

68-92

150*60

28-49

300*52.5KW

72-92

400*74

68-76

150*72

29-40

KB300*52.5

72-92

400*75.5K

74

170*60

30-40

KB300*52.5N

72-98

B400*86

52-55

180*60

30-40

JD300*52.5N

72-98

400*90

42-56

180*72

30-58

300*53K

80-84

Y400*142

36-37

180*72K

30-37

300*55

70-86

400*144

36-41

B180*72K

34-51

300*55.5K

76-82

Y400*144K

36-41

B180*72A

30-51

300*71K

72-55

420*100

50-58

H180*72

30-50

300*109N

25-42

450*71

76-88

190*60

30-40

K300*109

37-41

DW450*71

76-88

190*72

34-39

300*109WK

35-42

450*73.5

76-84

200*72

34-47

B300*84

78-52

450*76

80-84

200-*72K

37-47

T300*86K

48-52

450*81N

72-80

230*48

60-84

320*52.5

72-98

450*81W

72-78

230*48K

60-84

B320*52.5

68-98

KB450*81.5

72-80

230*72

42-56

320*54

70-84

K450*83.5

72-74

230*72K

42-56

B320*86

49-52

B450*84

53-56

230*96

30-48

320*90

52-56

B450*86

52-55

230*101

30-36

320*100

38-54

450*90

58-76

250*47K

84

320*100W

37-65

KU450*90

58-76

250*48.5K

80-88

Y320*106K

39-43

T450*100K

48-65

250*52.5K

72-78

350*52.5

70-92

K450*163

38

250*72

47-57

350*54.5K

80-86

485*92W

74

B250*72

34-60

B350*55K

77-98

500*90

76-82

B250*72B

42-58

350*56

80-86

500-92

72-84

E250*72

37-58

350*75.5K

74

500*92W

78-84

250*96

35-38

350*90

42-56

500*100

71

250*109

35-38

350*100

46-60

K500*146

35

260*55.5K

74-80

350*108

40-46

600*100

76-80

Y260*96

38-41

350*109

41-44

600*125

56-64

260*109

35-39

Y370*107K

39-41

700*100

80-98

280*72

45-64

400*72.5N

70-80

750*150

66

Y280*106K

35-42

400*72.5W

68-92

800*125

80

300*52.5N

72-98

Y400*72.5K

72-74
300*152.4


46

300*52.5W

72-92

KB400*72.5K

68-76
483*152.4*52

PS: What shown above is just part of our products. If you can't find what you need, please feel free to contact us.
