JD 764 High Speed Dozer Rubber Track 610X127X40
Product Description
| Size |
610x127x40 |
| Outer Pattern |
Stripe Pattern |
| Width |
610mm |
| Pitch Length |
127mm |
| Links(No.of Drive Lugs/Teeth) |
40 |
| Length |
127x40=5080mm |
| Net Weight |
292kg/pc |
| Material |
Rubber and Steel |
| Warranty |
Guaranteed 12 Months under Normal Use |
| MOQ |
1 piece |
| Delivery Time |
25-35 working days generally, depends on the order quantity. |
| Condition |
100% New |
| OEM |
Supported |
| HS CODE |
843149 |
If you are not clear about what width/pitch/link stands for, please have a look at the following picture.
Product Pictures

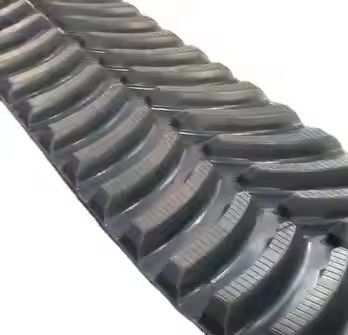

1. Outer Pattern
2. Inner Teeth
Rubber track for tractor, agricultural rubber crawler, harvester rubber belt track (915x752.4x42):
1. Small order is acceptable
2. Fast delivery time
3. Advanced technique and professional technical personnel
4. Conventional type or interchangeable type rubber track
5. Application:tractors and other agricultural machine
6. The gap between iron cores is very small so that can support the track roller completely during driving, reduces the shock between machine and rubber track.
7. The length can be adjusted to meet your needs. You can use this model on robot, rubber track chassis.
Any problem please contact with me.
Delivery and Packing
1.Delivery
The lead time is normally around 25-30 working days if out of stock. Delivery time might get longer if the quantity is large.

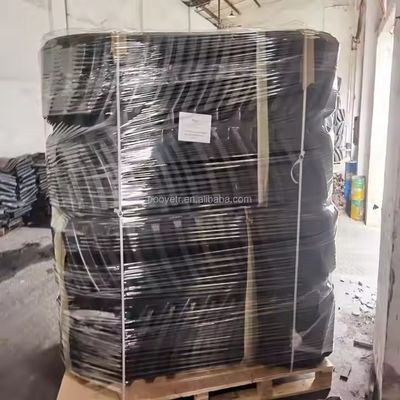

2.Packing
Generally, the rubber tracks are packed with wooden pallet with plastic film wrapped outside.
Nude packing is also applied for orders in containers to save space.
Inner Structure
The rubber tracks are made with imported natural rubber outside and steel wires and teeth inside to make it much stonger for heavy loads.
Features
(1). Less round damage
Rubber tracks cause less damage to roads than steel tracks, and less rutting of soft ground than either Steel tracks of wheel products.
(2). Low noise
A benefit to equipment operating in congested areas, rubber track products less noise than steel tracks.
(3). High speed
Rubber track permit machines to travel at a higher speed than steel tracks.
(4). Less vibration
Rubber tracks insulate machine and operator from vibration, extending the machine's lifetime and Lowering operate fatigue.
(5). Low ground pressure
The ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30 kg/ CMM, A major reason for its use on the wet and soft terrain.
(6). Superior traction
The added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles of the Sane weight.
How to Extend the Service Life of Rubber Tracks
Rubber track's pulling perofrmance is twice that of wheels .
It permits the lighter vehicles the same weight .
Below shows the ways of how to use rubber the track and how to use it correctly to lengthen its service life.
1. Adjust the tension of the rubber crawler so that the height, the variable range is 10-20mm when the machine is lifted. Readjust when the tension decreases. (Be careful because the rubber crawler may come off if the tension is too low).
2. Avoid projection from the frame around the rubber crawler, especially on its inner circumference. (Rubber crawlers are easily deformed; If it comes into contact with the frame, an accident such the rubber being cut can occur).
3. Avoid sharp projections when traveling.
4. Avoid turning too fast on concrete roads with a high coefficient of frction because this can cause accidents such as cutting the rubber.
5. Be careful that no oil, etc adheres to the rubber track. If it does, wipe it off immediately.
6. When storing for long periods, keep indoors, away from direct sunshine and rain.
7. Replace as soon as possible when abrasion of sprockets is observed.
About US
Shanghai Puyi Industrial Co., Ltd is a speicialized manufacturer to produce and sell rubber tracks and rubber pads who has top production equipment and advanced test facilities so that we can produce most varieties of tracks with endless steel cord. We are also one of the departments that draft the national standard rubber track.
Our products are exports to most of the developed countries in Europe, America, Oceania, and Asia. We are awarded ISO9001-2000 certificate of national quality assurance from UK and Hi-Tech Enterprise from Shanghai Tech-Committee. We try our best to meet all requirements from our customiers by our innovative products and unique service.
Our main products are mini-excavator track, dumper and skid steer loader track, agricultural track, pavior track, snow mobile track and other special track.
We warmly welcome your cooperation!

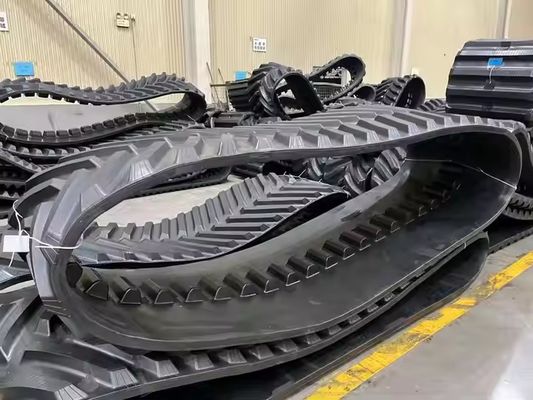

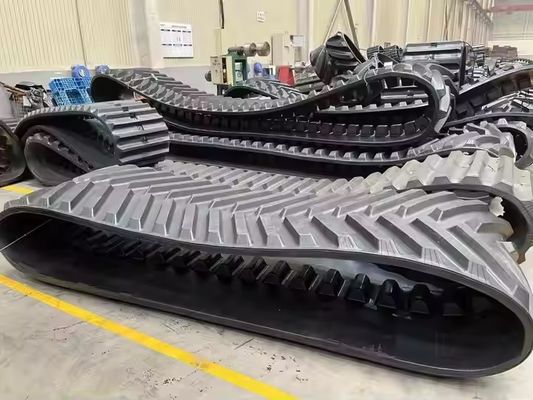

Workhouse and ware house pictures
