Product Details:
Payment & Shipping Terms:
|
Width: | 450mm | Pitch: | 86 |
---|---|---|---|
Link: | 56 | Material: | Rubber And Steel |
Overall Length: | 4816mm | Weight: | 242.48kg |
Highlight: | rubber tank tracks,mini crawler tracks |

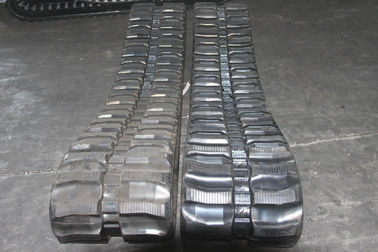

Loader Rubber Track ( B450X86SBX56 ) for Skid Steer to Less vibration and operability
Skid steer loader rubber track (450-86SB-56)
The size of rubber track can be adjusted according to your actual need
If this is not the model you are looking for,please advise
Parameters:
SKID STEER LODER TRACK | ||||||||
size width*pitch | link | A | B | C | D | F | pattern | guiding |
B180*72A | 31-43 | 23 | 63 | 29 | 22 | 10 | AE | B2 |
B250*72A | 34-60 | 23 | 63 | 29 | 22 | 10 | AE | B2 |
E250*72 | 34-60 | 29 | 76 | 36 | 27 | 22.5 | CH | B2 |
B300*84 | 48-52 | 48 | 95 | 48 | 36 | 25 | AE | A2 |
T300*86K | 48-52 | 36 | 84 | 43.5 | 31.5 | 22 | AA | A2 |
B320*84 | 50-53 | 46 | 96 | 48 | 34 | 25 | AE | A2 |
T320*86K | 48-52 | 36 | 84 | 43.5 | 31.5 | 25 | CH | A2 |
B320*86 | 49-52 | 48 | 95 | 48 | 36 | 25 | AE | A2 |
B400*86 | 52-55 | 48 | 97 | 48 | 36 | 25 | AE | A2 |
B450*84 | 53-56 | 48 | 97 | 48 | 36 | 25 | AE | A2 |
B450*86 | 52-55 | 48 | 97 | 48 | 36 | 25 | AE | A2 |
T450*100K | 48-65 | 50 | 104 | 47 | 44 | 30 | CH | A2 |
Specifications:
1. Characteristics of rubber track(450-86-52):
1). Rubber track with Less damage to the ground surface
2). Low noise rubber tracks
3). High running speed rubber track
4). Less vibration for the machine with this kind of rubber tracks;
5). Low ground contact specific pressure
6). High tractive force rubber track
7). Light weight rubber track
8). Anti-vibration rubber track
2. Conventional type or interchangeable type rubber track
3. The gap between iron cores is very small so that can support the track roller completely during driving, reduces the shock between machine and rubber track.
4. For Bobcat Compact Track Loader rubber track (450-86-52), the length can be adjusted to meet your needs.
We agree:
1. Small order accept
2. Fast delivery
3. Advanced technique
Rubber track we can supply
Width*Pitch length(mm) | Number of Links | Width*Pitch length(mm) | Number of Links | Width*Pitch length(mm) | Number of Links |
130*72 | 28-53 | 300*52.5K | 72-84 | 400*72.5KW | 68-92 |
150*60 | 28-49 | 300*52.5KW | 72-92 | 400*74 | 68-76 |
150*72 | 29-40 | KB300*52.5 | 72-92 | 400*75.5K | 74 |
170*60 | 30-40 | KB300*52.5N | 72-98 | B400*86 | 52-55 |
180*60 | 30-40 | JD300*52.5N | 72-98 | 400*90 | 42-56 |
180*72 | 30-58 | 300*53K | 80-84 | Y400*142 | 36-37 |
180*72K | 30-37 | 300*55 | 70-86 | 400*144 | 36-41 |
B180*72K | 34-51 | 300*55.5K | 76-82 | Y400*144K | 36-41 |
B180*72A | 30-51 | 300*71K | 72-55 | 420*100 | 50-58 |
H180*72 | 30-50 | 300*109N | 25-42 | 450*71 | 76-88 |
190*60 | 30-40 | K300*109 | 37-41 | DW450*71 | 76-88 |
190*72 | 34-39 | 300*109WK | 35-42 | 450*73.5 | 76-84 |
200*72 | 34-47 | B300*84 | 78-52 | 450*76 | 80-84 |
200-*72K | 37-47 | T300*86K | 48-52 | 450*81N | 72-80 |
230*48 | 60-84 | 320*52.5 | 72-98 | 450*81W | 72-78 |
230*48K | 60-84 | B320*52.5 | 68-98 | KB450*81.5 | 72-80 |
230*72 | 42-56 | 320*54 | 70-84 | K450*83.5 | 72-74 |
230*72K | 42-56 | B320*86 | 49-52 | B450*84 | 53-56 |
230*96 | 30-48 | 320*90 | 52-56 | B450*86 | 52-55 |
230*101 | 30-36 | 320*100 | 38-54 | 450*90 | 58-76 |
250*47K | 84 | 320*100W | 37-65 | KU450*90 | 58-76 |
250*48.5K | 80-88 | Y320*106K | 39-43 | T450*100K | 48-65 |
250*52.5K | 72-78 | 350*52.5 | 70-92 | K450*163 | 38 |
250*72 | 47-57 | 350*54.5K | 80-86 | 485*92W | 74 |
B250*72 | 34-60 | B350*55K | 77-98 | 500*90 | 76-82 |
B250*72B | 42-58 | 350*56 | 80-86 | 500-92 | 72-84 |
E250*72 | 37-58 | 350*75.5K | 74 | 500*92W | 78-84 |
250*96 | 35-38 | 350*90 | 42-56 | 500*100 | 71 |
250*109 | 35-38 | 350*100 | 46-60 | K500*146 | 35 |
260*55.5K | 74-80 | 350*108 | 40-46 | 600*100 | 76-80 |
Y260*96 | 38-41 | 350*109 | 41-44 | 600*125 | 56-64 |
260*109 | 35-39 | Y370*107K | 39-41 | 700*100 | 80-98 |
280*72 | 45-64 | 400*72.5N | 70-80 | 750*150 | 66 |
Y280*106K | 35-42 | 400*72.5W | 68-92 | 800*125 | 80 |
300*52.5N | 72-98 | Y400*72.5K | 72-74 | 800*150 | 68/70 |
300*52.5W | 72-92 | KB400*72.5K | 68-76 | 900*150 | 74 |
How to confirm a replacement rubber track size?
First try to see if the size is stamped along the inside of the track.
If you can’t find the rubber track size stamped on the track, Pls inform the blow information to us:
The make, model, and year of the vehicle
The Rubber Track Size = Width() x Pitch x Number of Links (described below)
1 inch = 25.4 millimeters
1 millimeter = 0.0393701 inches
Product Warranty
All our rubber tracks are made with a serial Number, we may trace the product date against the serial Number.
